Figure 11 of
Wride, Mol Vis 2003;

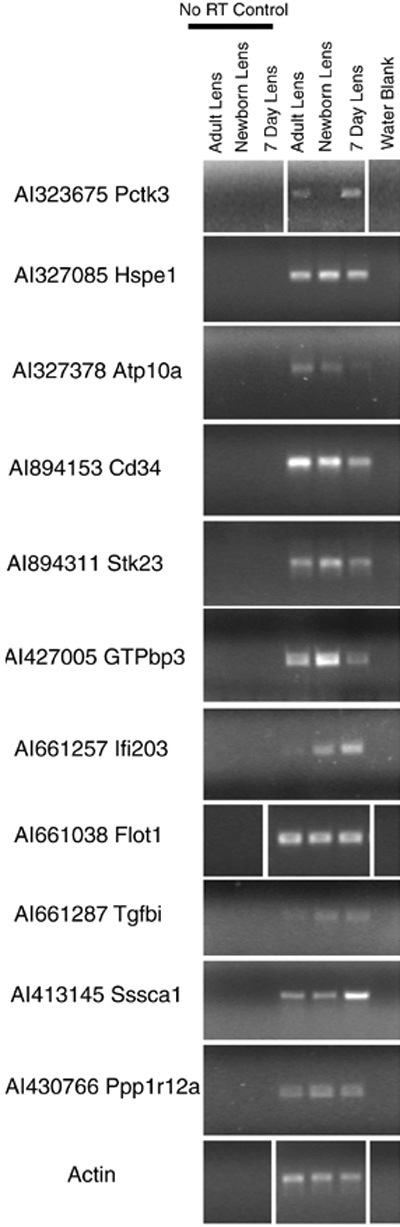

Figure 11. Semi-quantitative RT-PCR confirms expression in the lens of a selection of known genes
Semi-quantitative RT-PCR confirms expression in the lens of a selection of known genes identified using the microarray. PCRs shown are representative of at least three repetitions of each PCR. Where gaps exist between PCRs depicted for the same primer set, this is because the picture has been assembled from different lanes of the same gel. Note that actin controls show even band intensities across all of the samples. GAPDH controls gave similar results (see Figure 7, Figure 8, Figure 9, and Figure 10). For details of normalized intensity values for each of the lens samples for each gene, see Table 8.
