Figure 8 of
Wride, Mol Vis 2003;

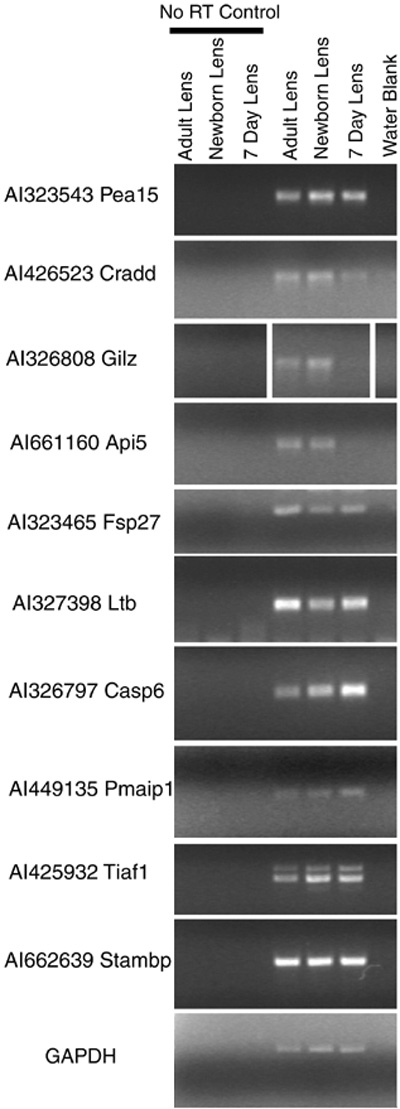

Figure 8. RT-PCR confirms expression of apoptosis genes identified using the microarray
Semi-quantitative RT-PCR confirms expression in the lens of apoptosis genes identified using the microarray. PCRs shown are representative of at least three repetitions of each PCR. Where gaps exist between PCRs depicted for the same primer set, this is because the picture has been assembled from different lanes of the same gel. GAPDH controls are shown and actin controls gave similar results for the same samples used (see Figure 11). For details of normalized intensity values for each of the lens samples for each gene, see Table 6.
