Figure 10 of Wride, Mol Vis 2003; 9:360-396.

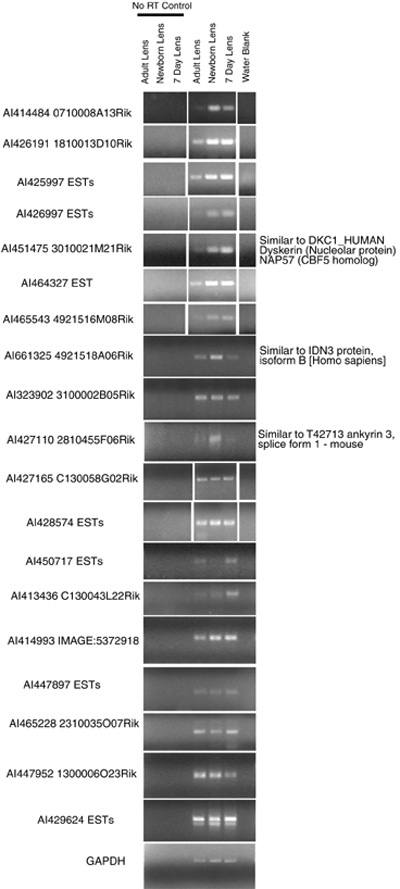

Figure 10. Semi-quantitative RT-PCR confirms expression in the lens of a selection of novel and uncharacterized genes

Semi-quantitative RT-PCR confirms expression in the lens of a selection of novel and uncharacterized genes identified using the microarray. PCRs shown are representative of at least three repetitions of each PCR. Where gaps exist between PCRs depicted for the same primer set, this is because the picture has been assembled from different lanes of the same gel. GAPDH controls are shown and actin controls gave similar results for the same samples used (see Figure 11). For details of normalized intensity values for each of the lens samples for each gene, see Table 7.

(70 K)

Wride, Mol Vis 2003; 9:360-396 <http://www.molvis.org/molvis/v9/a50/>
©2003 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
