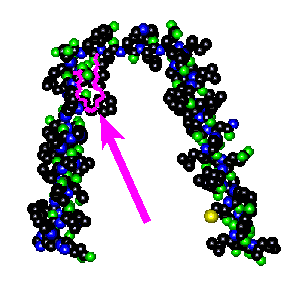

Figure 5. Model of 12 (R) HETE docked with the alpha-subunit of Na,K-ATPase
The arrow shows where the 12 (R) HETE is docked with the H3-H4 region of the alpha-subunit of Na,K-ATPase. A model of an isolated molecule of the H3-H4 region of the alpha-subunit of Na,K-ATPase is shown in Figure 3 for comparison. A color legend is shown below.
| Color | Atom |
|---|---|
| Black | Carbon |
| Blue | Nitrogen |
| Green | Oxygen |
| Red | Phosphorus |
| Yellow | Sulfur |
| Lavender | Calcium |
