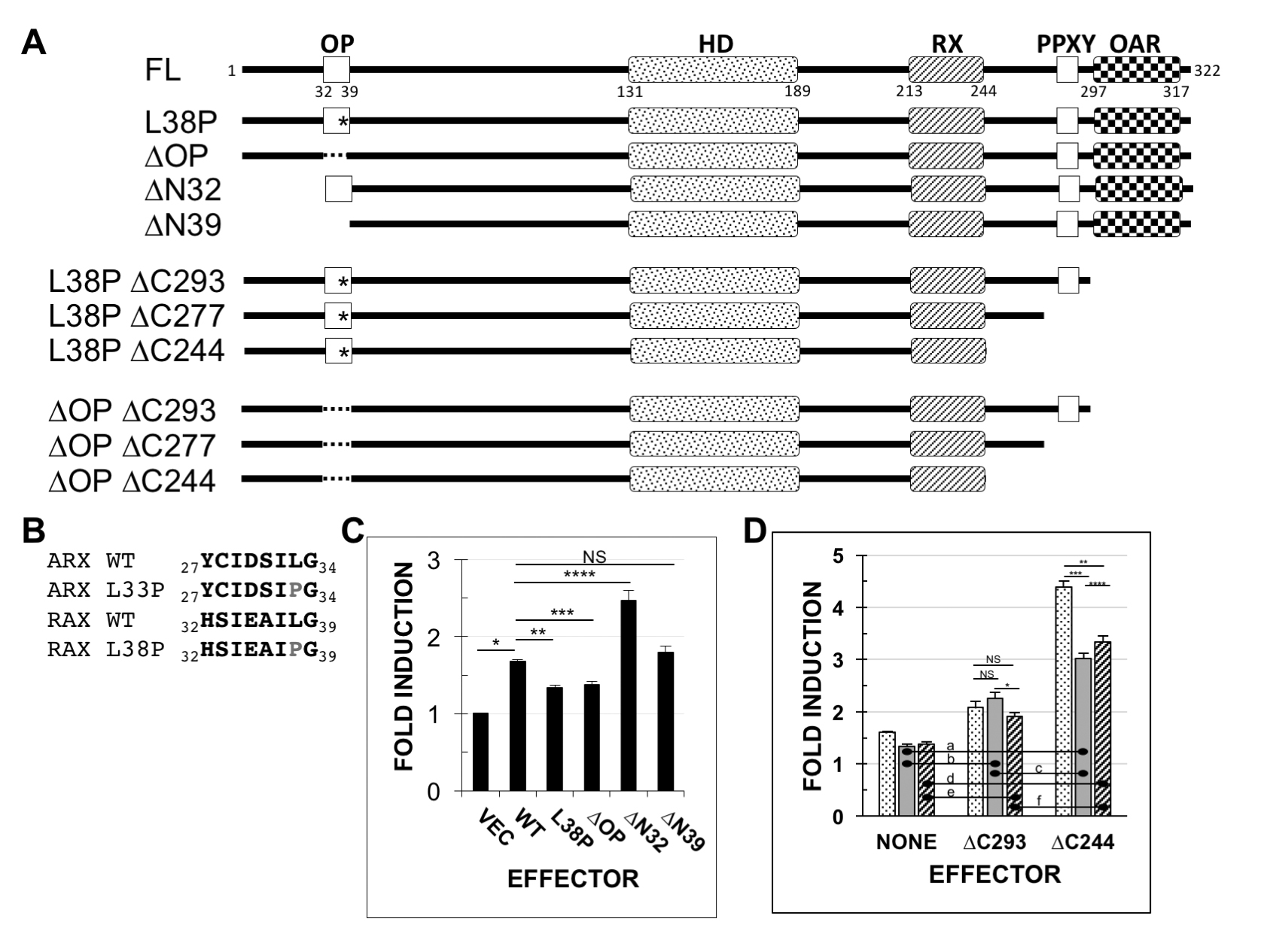

Figure 2. The Rax C- and N-terminal regions exhibit functional interaction. Full-length (FL) or mutated Rax was assayed for ability
to activate expression of a
Xenopus rhodopsin gene promoter–luciferase reporter gene.
A: Schematic representation of Rax constructs assayed. Numbers indicate amino acid residues. Dotted lines indicate internal
deletions. Point mutations are marked by an asterisk (*).
B: Alignment of sequences from
X. laevis arx and
rax OP motifs.
C: Luciferase assay results for Rax N-terminal mutations and deletions diagrammed in
A. Reporter gene activity is calculated as firefly luciferase activity normalized to
Renilla luciferase control and is presented relative to activity of a pCS2-only plasmid control. Values represent the mean of three
to nine independent experiments (nine replicates per experiment). Error bars represent standard deviation from the mean. All
vector-only and Rax activity values except ΔN39 are statistically significantly different from full-length Rax activity using
a corrected (Bonferroni) critical value of p<0.0017 (*p=4.06 × 10
−48, n=81; **p=6.90 × 10
−8, n=27; ***p=7.52 × 10
−6, n=27; ****p=2.13 × 10
−14, n=27; *****p=0.00761, n=27).
D: Luciferase assay results for Rax constructs containing C-terminal truncations (indicated on the x-axis) and an intact N-terminus
(black filled bars), the L38P mutation (gray filled bars), or ΔOP (hatched bars), as shown in
Figure 1A or the lower portion of panel A of this figure. All pairwise activity values are statistically significantly different, except
where indicated, using a corrected (Bonferroni) critical value of p<0.0017 (
ap=3.34 × 10
−39,
bp=4.42 × 10
−10,
cp=3.29 × 10
−8,
dp=9.50 × 10
−38,
ep=1.94 × 10
−8,
fp=6.53 × 10
−25, *p=1.87 × 10
−17, **p=5.23 × 10
−14, ***p=7.12 × 10
−19, ****p=8.78 × 10
−11; in each case, n=27). Abbreviations: HD = homeodomain, NS = not significant, OAR = orthopedia, aristaless, rax, OP = octapeptide
domain, PPXY = PPXY motif (putative YAP/TAZ binding sequence), RX = Rx domain. *in constructs containing L38P denotes mutated
leucine residues (to proline).
