Figure 5 of Guo, Mol Vis 2014; 20:1643-1659.

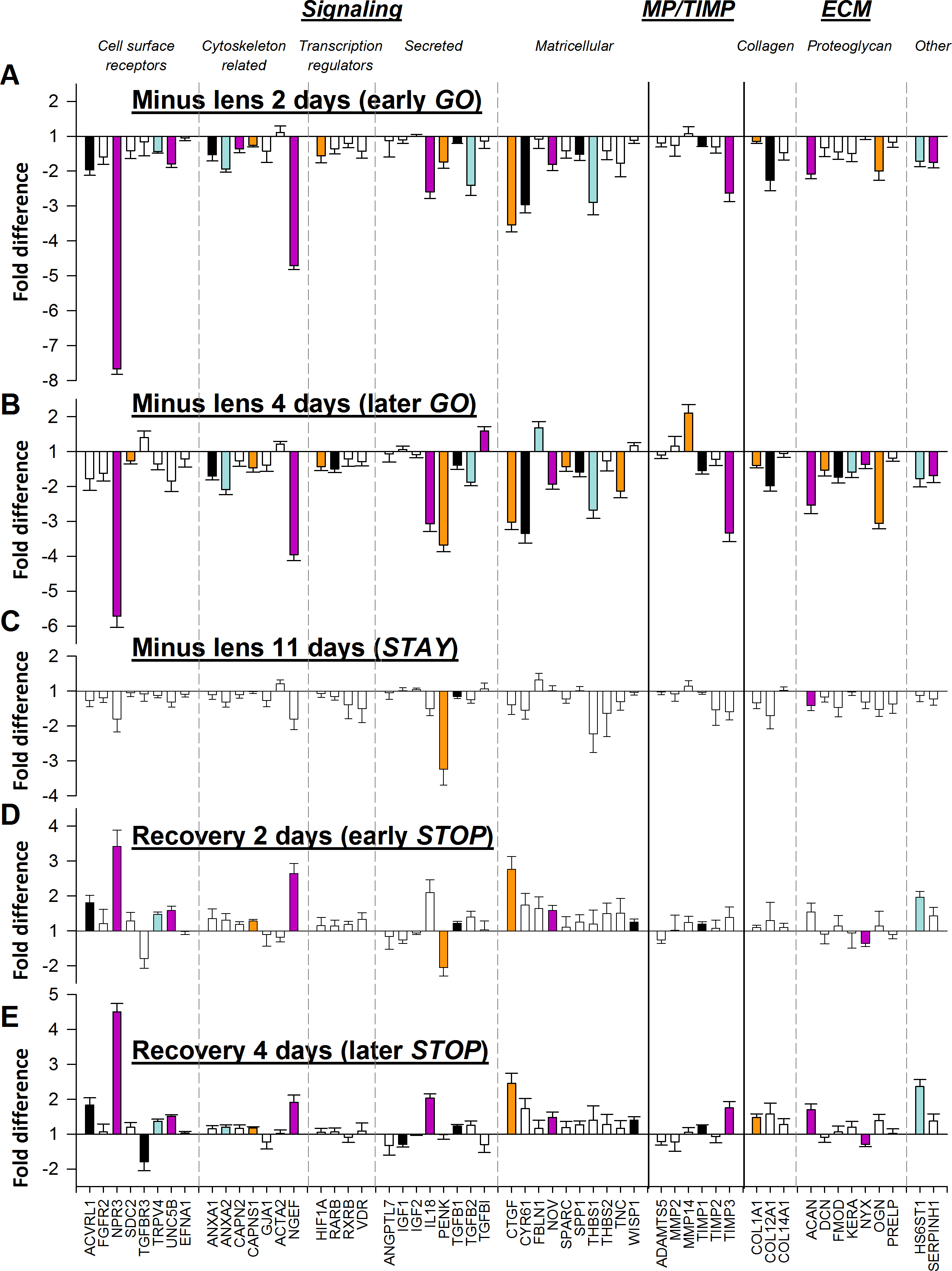

Figure 5. Gene expression differences. Comparison of gene expression differences (treated eye versus control eye) produced by (A) 2 days of minus-lens wear, (B) 4 days of minus-lens wear, (C) 11 days of minus-lens wear, (D) 2 days of recovery from 11 days of minus-lens wear, and (E) 4 days of recovery from 11 days of minus-lens wear. Bar color is arbitrary and intended to help in comparing the same gene in the five different conditions. Error bars=SEM. The data in panels (A) and (B) are reproduced with permission from [45] and are presented here for comparison.
