Figure 8 of Giovingo, Mol Vis 2013; 19:2151-2164.

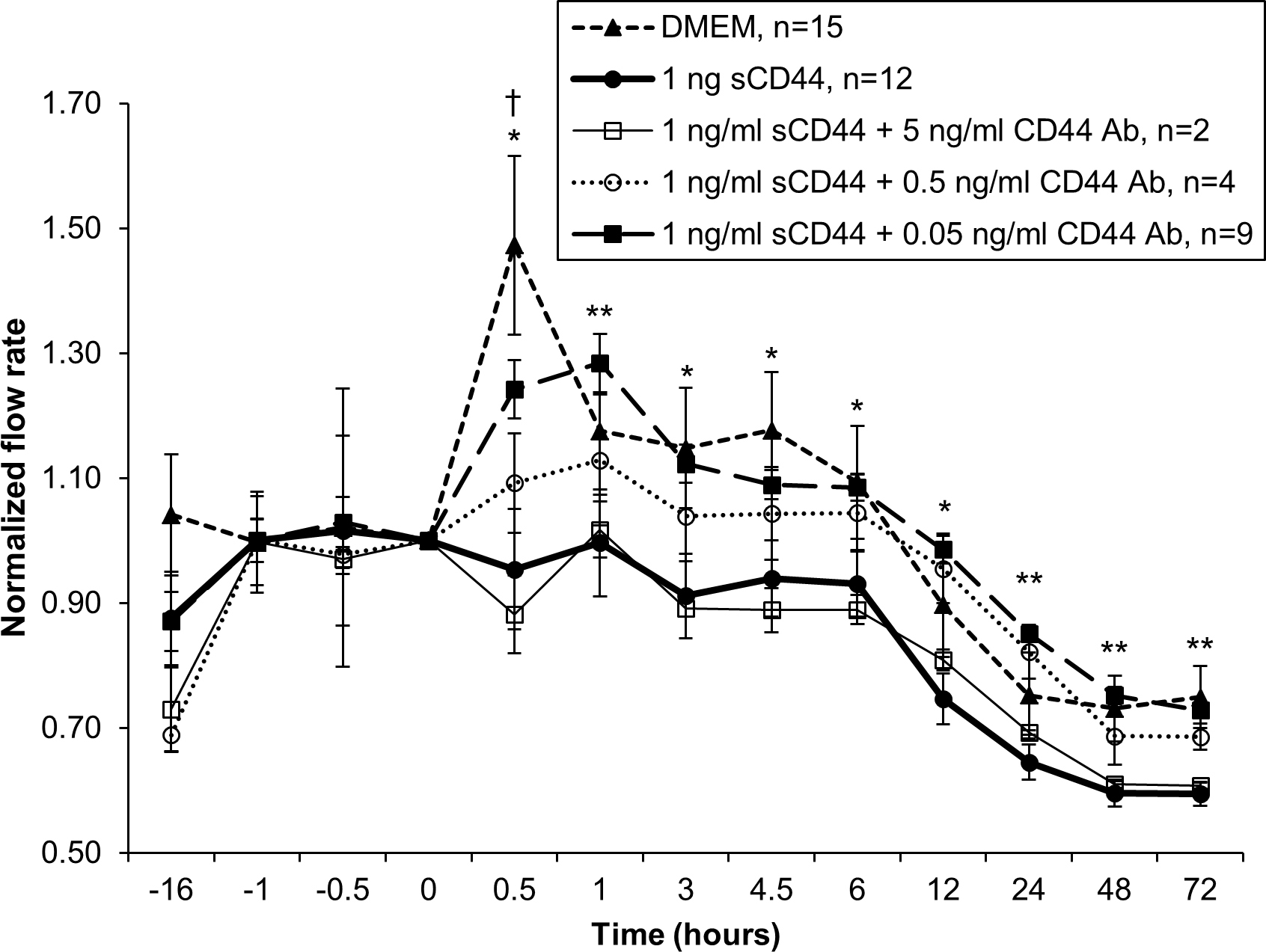

Figure 8. Effects of CD44 neutralizing antibody on sCD44 normalized flow rate. Porcine anterior segments were perfused with 1 ng/ml sCD44 (as shown in Figure 7), 1 ng/ml sCD44 + 0.05 ng/ml CD44 antibody, 1 ng/ml CD44 + 0.5 ng/ml CD44 antibody, and 1 ng/ml CD44 + 5.0 ng/ml CD44 antibody. Time points are the mean ± SEM and the number of experiments are shown in the insert. sCD44 versus sCD44 + 0.05 ng/ml CD44 antibody. The statistical comparisons are: sCD44 versus sCD44 + 0.05 ng/ml CD44 antibody, *p<0.05, **p<0.01; 0.05 ng/ml CD44 antibody versus 5.0 ng/ml CD44 antibody, † p<0.05.
