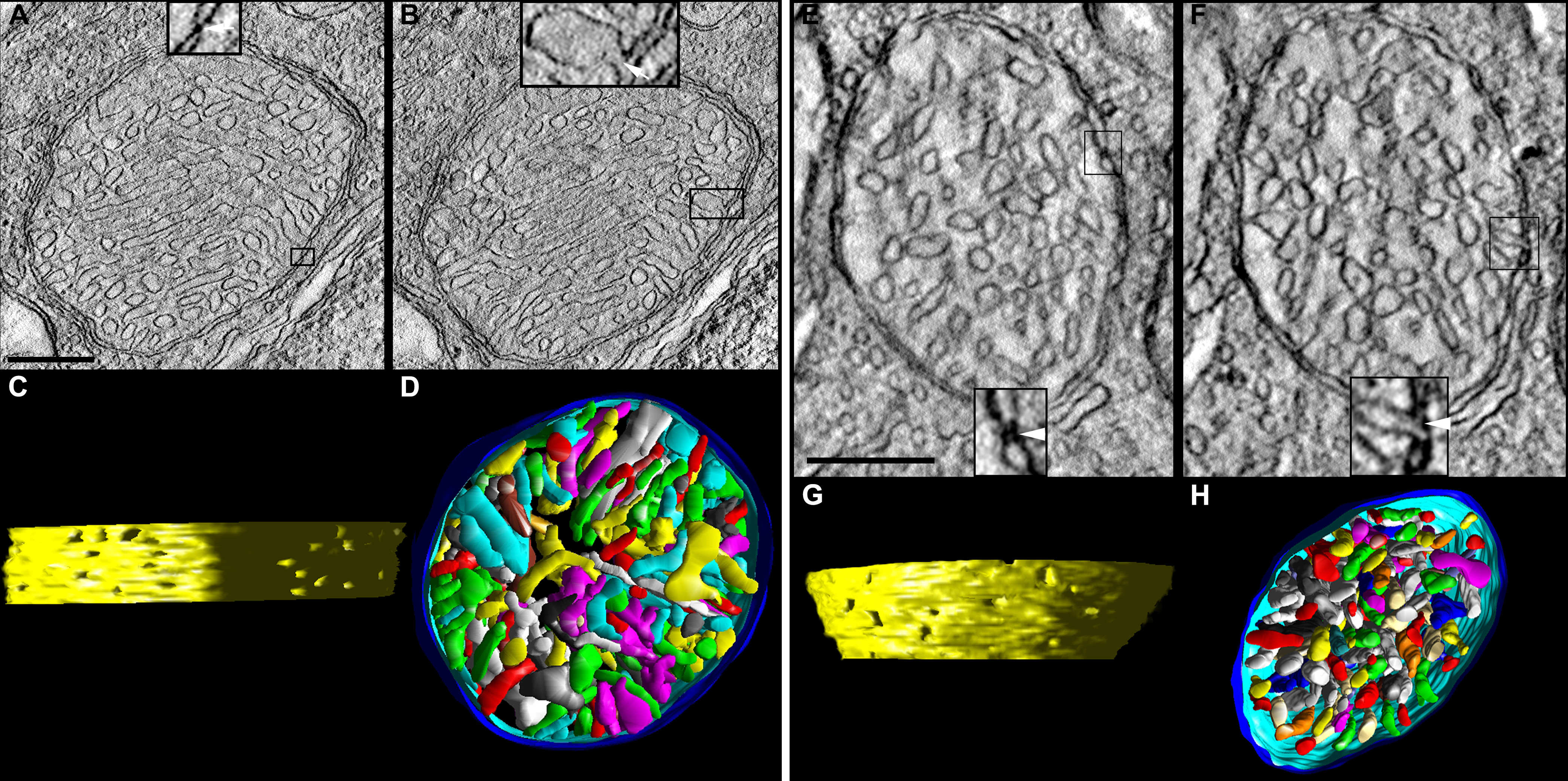

Figure 4. In the Bcl-xL transgenic mice, the structure of the spherule and pedicle mitochondria is similar to that of the control mice.
A–
D: Tomographic reconstructions of a Bcl-xL rod spherule mitochondrion from an adult mouse are presented. (
A and
B) The 2.2 nm slices near the middle of the volume show the dense packing of cristae typical for Bcl-xL and control mitochondria.
The contact sites and crista junctions (insets) have the same architecture as their control counterparts. Scale bars=200 nm.
C: The side view of the inner membrane of the segmented volume shows 21 crista junction openings in this view. The crista junction
diameter is increased compared to controls; see
Table 1.
D: The top view of the segmented volume shows the outer membrane and the entire complement of 173 cristae (various colors).
E–
H: Tomographic reconstructions of a Bcl-xL cone pedicle mitochondrion from an adult mouse are presented. (
E and
F) The 2.2 nm slices near the middle show a smaller mitochondrion with densely packed cristae. The contact sites and crista
junctions (insets) have the same architecture as their control and spherule Bcl-xL counterparts.
G: The side view of the inner membrane of the segmented volume shows 13 crista junction openings in this view.
H: The top view of the segmented volume showing the outer membrane and the entire complement of 110 cristae (various colors).
