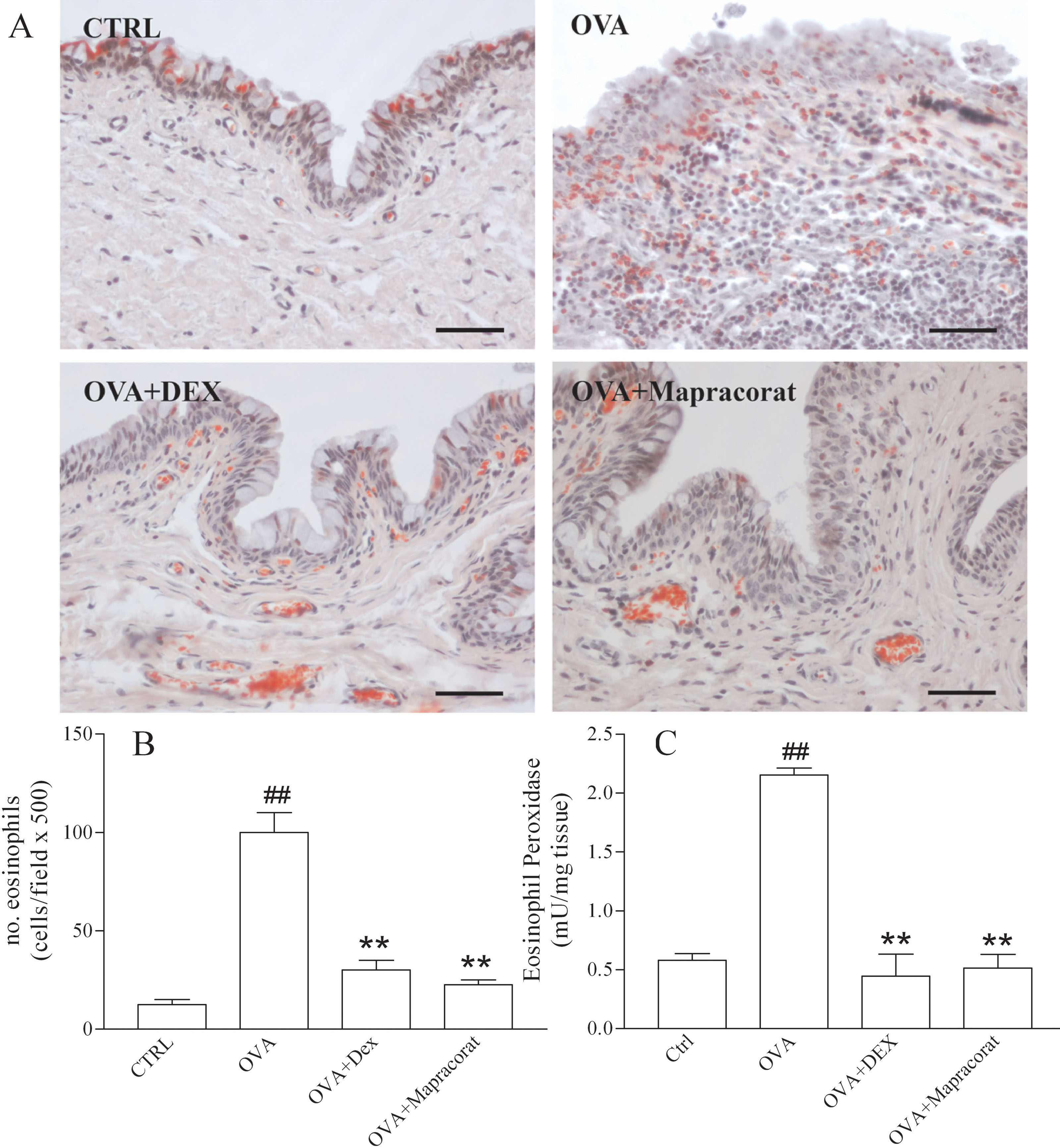

Figure 7. Effects of mapracorat and
dexamethasone eye drops on eosinophil infiltration induced by
ovalbumin in the guinea pig conjunctiva (details are reported in
the legend of
Figure 6).
A:
Photomicrographs of the conjunctiva 24 h after topical challenge
with ovalbumin. Substantial eosinophil infiltration is observed
in ovalbumin-treated guinea pigs in comparison to negative
controls treated with saline alone and not challenged with
ovalbumin. In guinea pigs treated with mapracorat or
dexamethasone eye drops and 45 min later with ovalbumin, there
was much less eosinophil infiltration than in conjunctiva of
guinea pigs treated with ovalbumin alone.
B: Effects of
mapracorat and dexamethasone eye drops on conjunctival
eosinophil infiltration 24 h after topical challenge with
ovalbumin. The eosinophils in each field were counted 24 h after
antigen exposure. Controls received saline alone and were not
challenged with ovalbumin.
C: Effects of mapracorat or
dexamethasone eye drops on conjunctival eosinophil peroxidase
levels 24 h after topical challenge with ovalbumin. Controls
received saline alone and were not challenged with ovalbumin.
**Versus ovalbumin; p value (p)<0.01.
##Versus
controls; p<0.01. The original pictures were taken at 500x
magnification. The scale bar represents 50 μm. Abbreviations:
CTRL represents controls; OVA represents ovalbumin; DEX
represents dexamethasone.
