Figure 2 of Chang, Mol Vis 2011; 17:1946-1956.

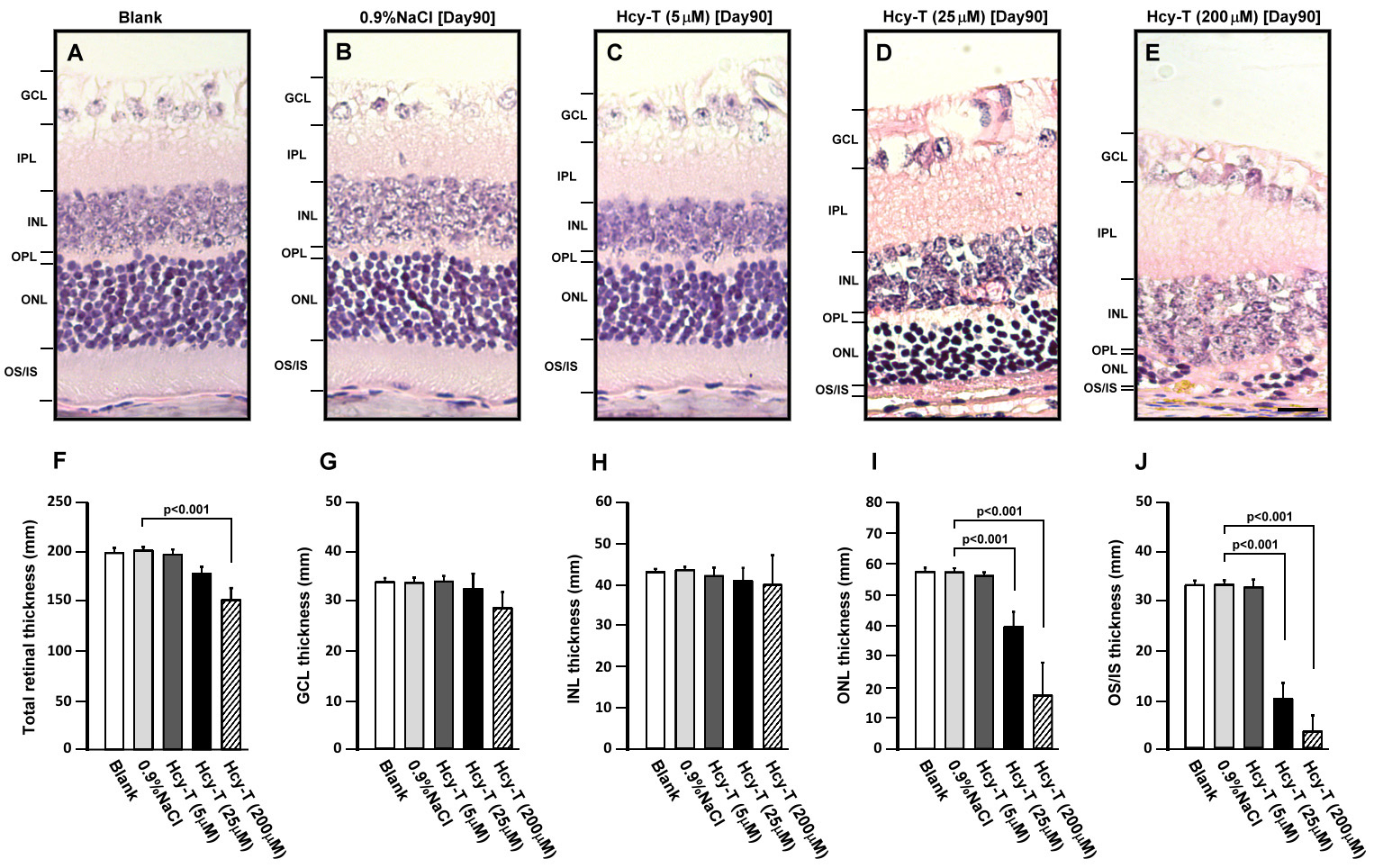

Figure 2. The effects of an intravitreal homocysteine-thiolactone (Hcy-T) injection on mouse retinas at day 90 after preparation. All retinas were prepared with hematoxylin-eosin staining for histological assessment and for measurement of the thickness of specific layers. A: Blank control without any injection. B: 0.9% NaCl sham injection control. C: Final intravitreal Hcy-T at 5 μM. D: Final intravitreal Hcy-T at 25 μM. E: Final intravitreal Hcy-T at 200 μM. F: Total retinal thickness. G: Ganglion cell layer (GCL) thickness. H: Inner nuclear layer (INL) thickness. I: Outer nuclear layer (ONL) thickness. J: Outer and inner segments of photoreceptors (OS/IS) thickness. The sample size for total retinal thickness was 5 in all groups. The error bars indicate standard error of the means (SEMs). Scale bar: 25 μm.
