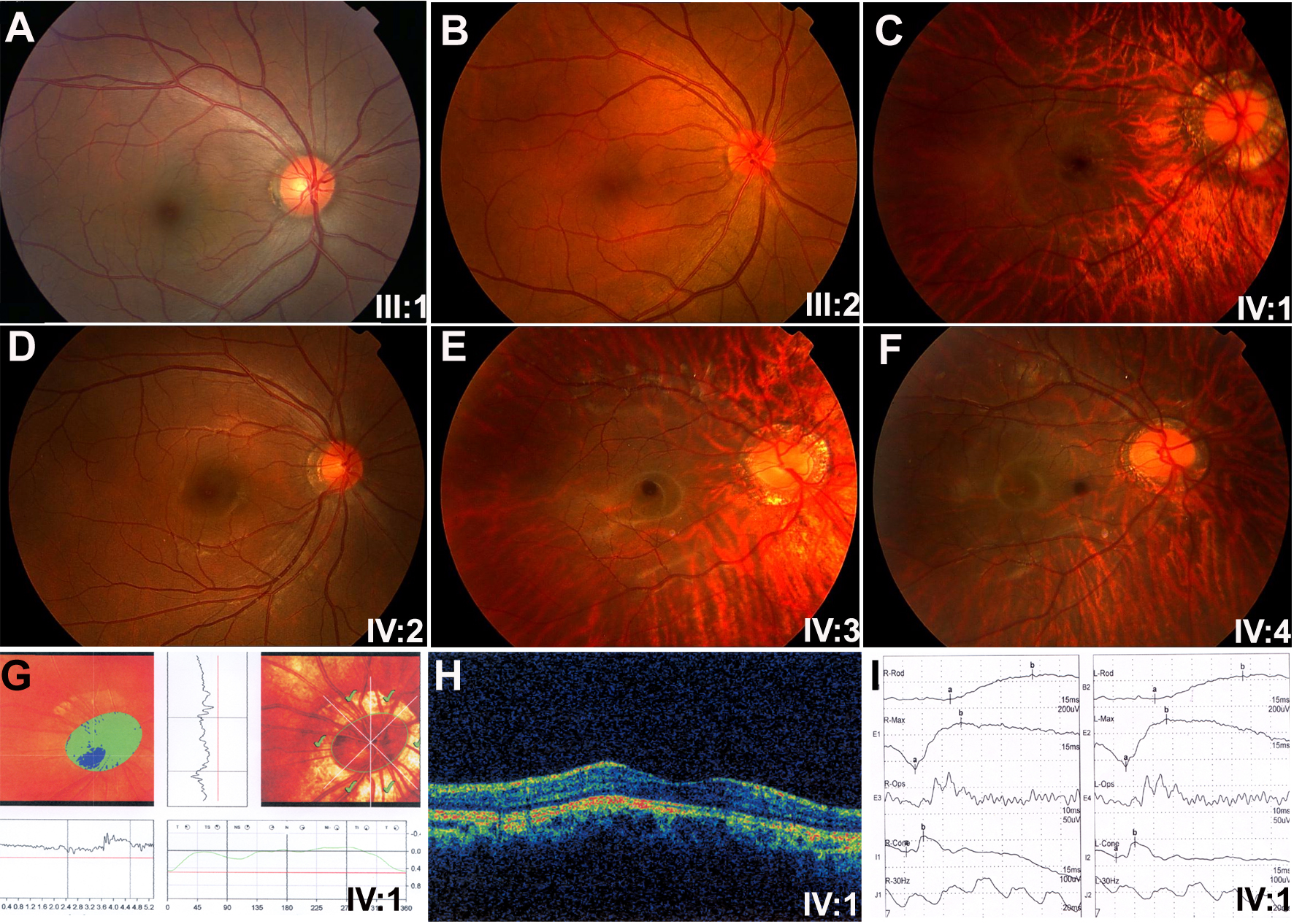

Figure 2. Clinical phenotypes of arHM.
A-
F:
Fundus photos from parents (
A,
B) and affected (
C,
E,
F) and unaffected (
D) offspring. The
individual numbers at the lower right corner of each photo are the same
as those in
Figure
1. All affected patients had a tigroid fundus change and
circular choroidal defects around the optic discs.
G-
I:
Results of HRT (
G), OCT (
H), and ERG (
I) from
affected individual IV:1 are shown. Normal HRT and OCT and mild reduced
cone responses were shown.
