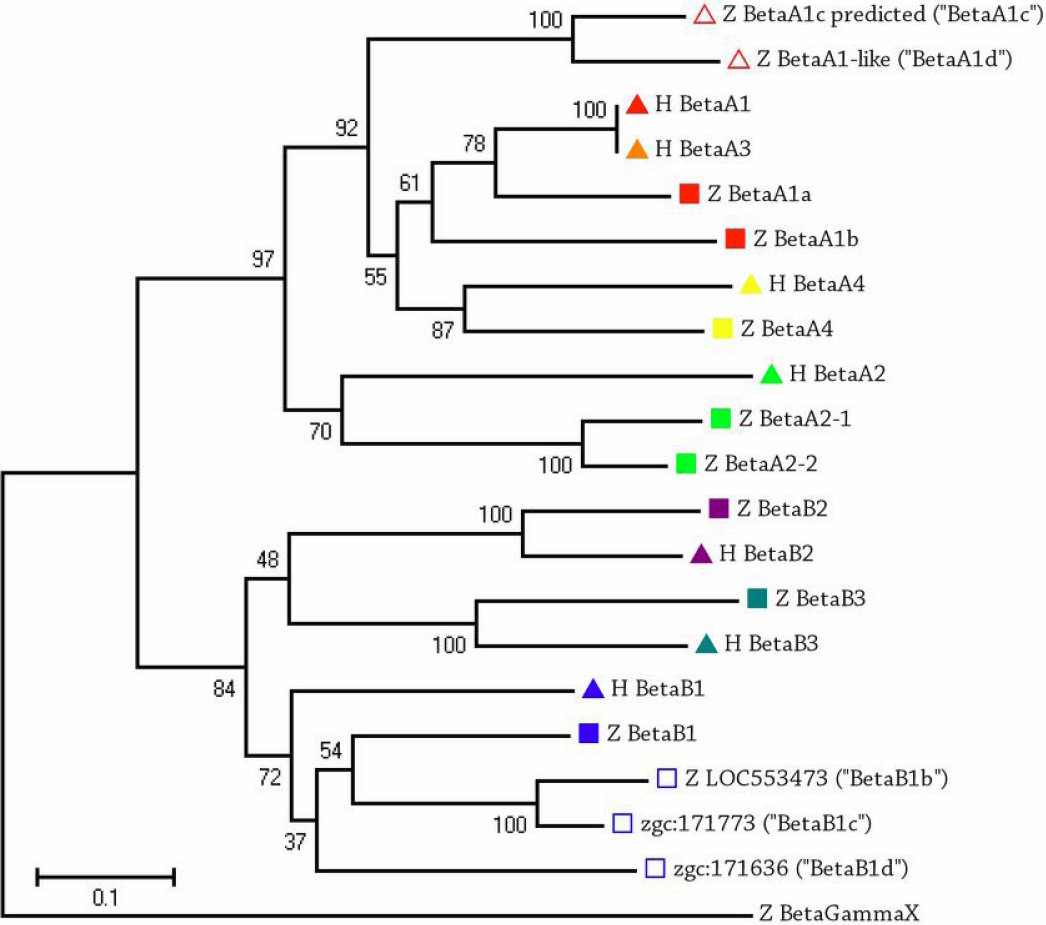

Figure 3. Phylogenetic tree of human and zebrafish β-crystallin genes constructed by
Mega 4 with 1000 bootstraps. All zebrafish β-crystallins listed were detected by shotgun proteomics of the zebrafish lens (
Table 2). Five novel β-crystallins (unfilled symbols) were detected and named based on their alignment. H, human; Z, zebrafish.
