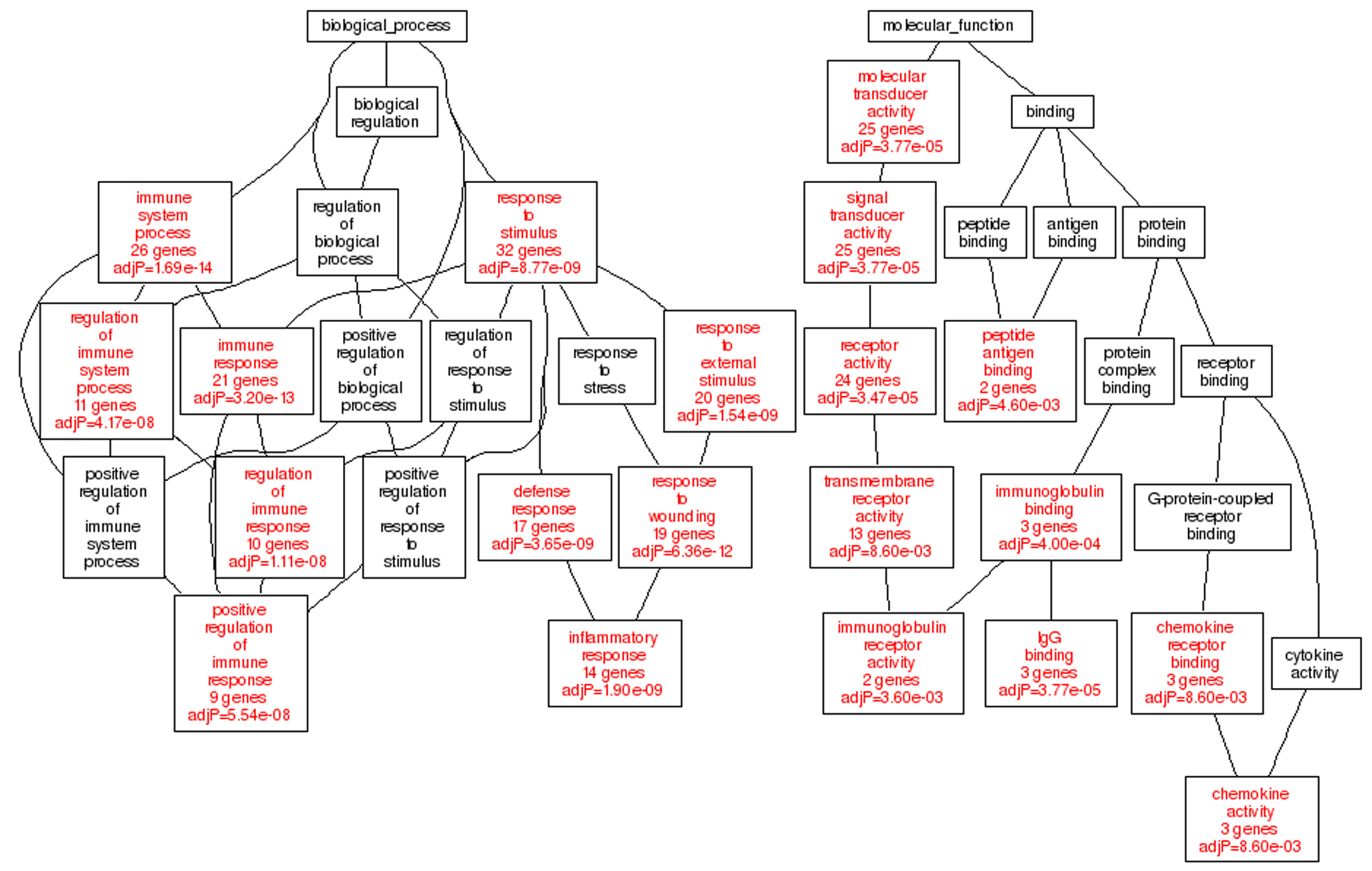

Figure 7. Gene ontology for innate
immunity. These data reveal that correlates of
Ptprc
(1422124_a_at) are related to the biology of innate immunity.
How to
generate WebGestalt’s Geneset Ontologies through GeneNetwork.
For the purpose of
identifying the Geneset Ontology of the Innate Immunity signature
network, a correlation of
Ptprc (1422124_a_at), a leukocyte,
microglial marker gene was used. As shown in
Figure 4, a Trait Correlation was
run and set to return the top 100 genes. At the top of the resulting
Correlation Table, the '
Gene Ontology' button was selected which
sends the 100 transcripts in this Correlation Table to WebGestalt for
GOTree analysis. When complete, there are three options: Directed
Acyclic Graph (DAG), Export TSV, or Export DAG. For this figure the DAG
was chosen and the biological_process and molecular_function listings
were displayed.
