Figure 4 of
Srivastava, Mol Vis 2006;
12:1615-1625.Figure 4 of
Srivastava, Mol Vis 2006;
12:1615-1625.

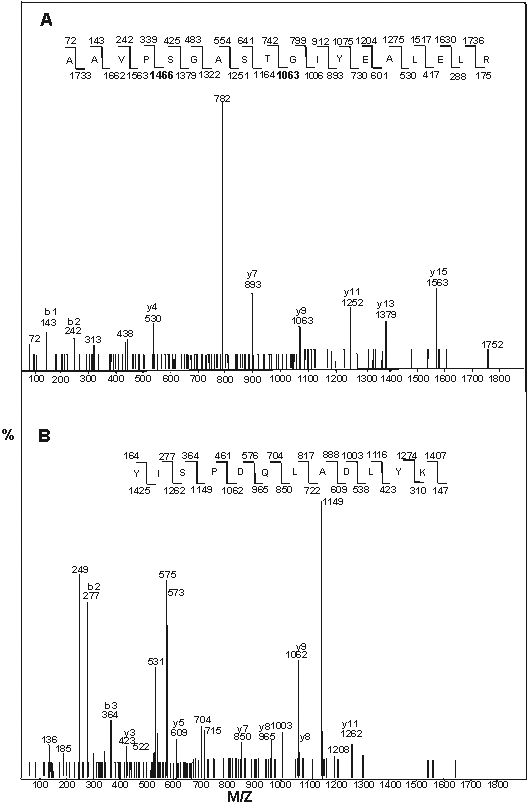

Figure 4.
ES-MS/MS analyses of tryptic fragment of protein spot number 29 as shown in Figure 3. A: A tryptic fragment with mass of 1804 showed a sequence of AAVPSGASTGIYEALELR, and (B) a tryptic fragment with mass of 1426 showed a sequence of YISPDQLADLYK.
