Figure 2 of Johnson, Mol Vis 2006; 12:1057-1066.

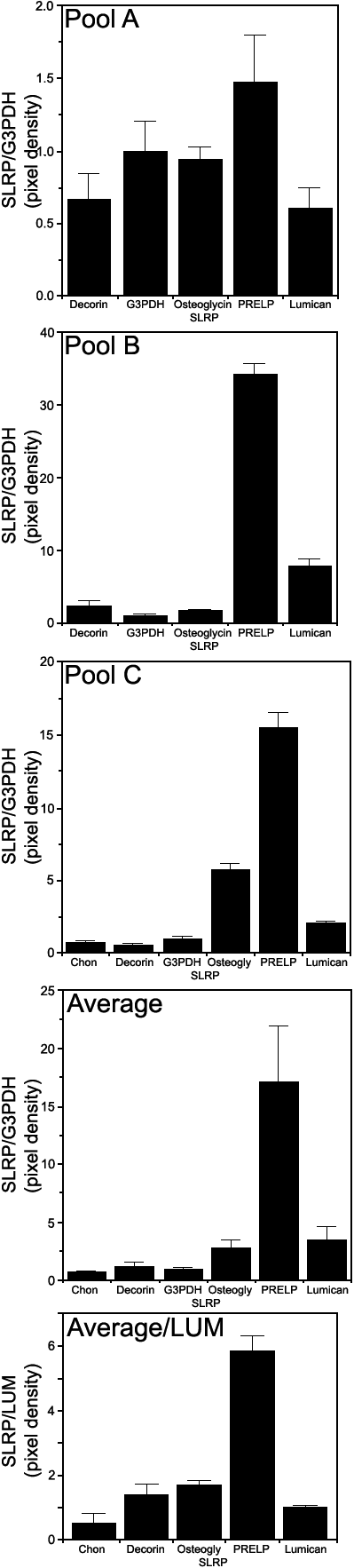

Figure 2.

Relative expression of SLRPS in the human sclera using semi-quantitative RT-PCR. Digitized images from Figure 1 were used to determine the average relative expression for 4 or 5 SLRPs and the housekeeping gene G3PDH in each of the 3 scleral RNA pools (Pool A, Pool B, and Pool C). The relative expression of SLRPs was averaged over the three scleral pools by determining the average SLRP/G3PDH pixel density for each SLRP in the three scleral pools (Average). Additionally, SLRP expression was normalized to the average expression of lumican for each cDNA pool, and the averages for the three cDNA pools were plotted for comparison (Average/LUM). In the image, Chon=chondroadherin; dec=decorin; G3PDH=glyceraldehyde-3-phosphate dehydrogenase; lum=lumican; ost=osteoglycin; PRELP=proline/arginine end leucine-rich proteoglycan.

(37 K)

Johnson, Mol Vis 2006; 12:1057-1066 <http://www.molvis.org/molvis/v12/a119/>
