Figure 3 of
Heys, Mol Vis 2004;
10:956-963.

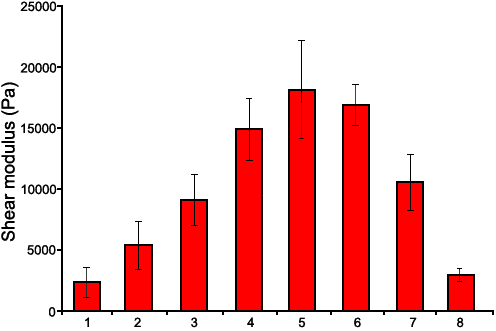

Figure 3. The stiffness profile of regions in an old human lens
Shear modulus measurements taken 1 mm apart across the equatorial section of a 64 year old lens (error bars represent standard deviations; n=3).
