Figure 2 of
Chen, Mol Vis 2003;
9:735-746.

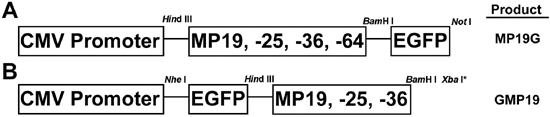

Figure 2. Schematic representation of EGFP expression vectors
A: Representation of vector pEGFP-N1, which results in fusion proteins having EGFP fused to the COOH-terminal end of MP19 or MP19 truncations. The resulting products are designated MP19G, MP19-25G, MP19-36G, and MP19-64G. B: Representation of vector pEGFP-C2, which results in fusion proteins having EGFP fused to the NH2-terminal end of MP19 and MP19 truncations. The resulting products are designated GMP19, GMP19-25, and GMP19-36.
