Figure 1 of
Komatireddy, Mol Vis 2003;
9:43-48.

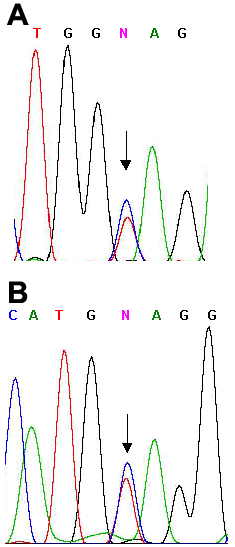

Figure 1. Novel mutations in ARA cases
A: Electropherogram of a sense strand of DNA from the proband of the ARA7 family (ARA7A) showing a C->T change at cDNA postion 367, resulting in a mutation from glutamine to a stop codon (Q123X). B: Electropherogram of a sense strand of DNA from the proband of ARA10 (ARA10A) family showing a C->T change at cDNA position 4, resulting in a mutation from glutamine to a stop codon (Q2X).
