Figure 3 of
Suryanarayana, Mol Vis 2003;
9:223-230.

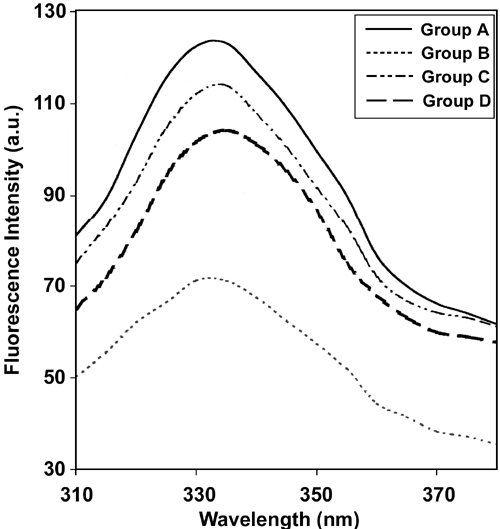

Figure 3. Tryptophan fluorescence of soluble protein in different groups
Protein (0.15 mg/ml) in 0.05 M sodium phosphate buffer pH 7.4 was excited at 295 nm and emission was monitored 300-400 nm. Data represent three observations.
