Figure 2 of
Schulz, Mol Vis 2002;
8:67-71.

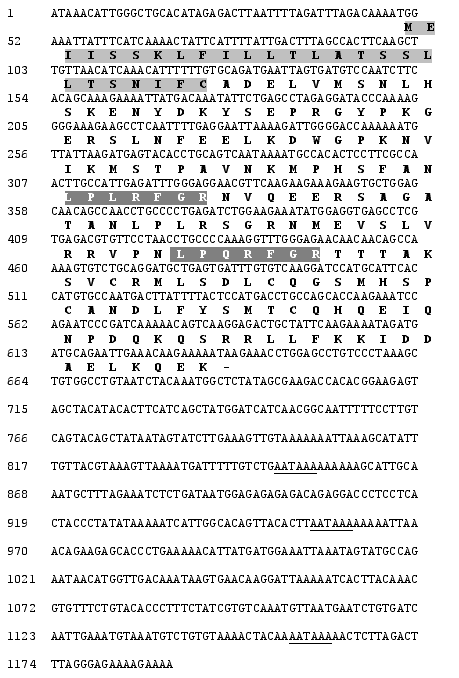

Figure 2. Full-length cDNA and hypothetical peptide sequence of C7orf9
A putative 26 amino acid signal peptide is highlighted in gray. The two characteristic motifs for RFamide peptides are depicted in dark gray. Three putative polyadenylation signals, AATAAA, are underlined.
