Figure 4 of
Zaidi, Mol Vis 2002;
8:472-476.

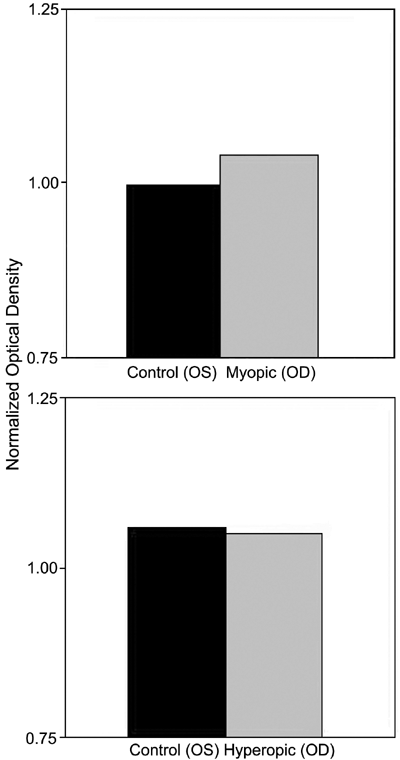

Figure 4. Medians of normalized data of control (OS) and treated (OD) samples for δ-crystallin
A: The OS and OD group medians were 1.00 and 1.02, respectively. Statistical analysis (Wilcoxon Signed Rank Test, p=0.10) revealed no significant difference in δ-crystallin concentration in lenses from eyes induced with form-deprivation myopia (OD) versus control eyes (OS). B: The OS and OD group medians were 1.06 and 1.05, respectively. Statistical analysis (Wilcoxon Signed Rank Test, p=0.17) revealed no significant difference in δ-crystallin concentration in lenses from eyes induced with hyperopia (OD) versus control eyes (OS). Statistical analysis (p=0.03) revealed significance in the difference of medians between the myopic and hyperopic study.
