Figure 1 of Dekomien, Mol Vis 2002; 8:138-142.

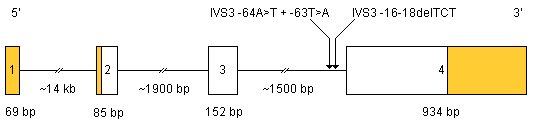

Figure 1. Genomic organization of the PDC gene

Genomic organization of the PDC gene, with open boxes refering to translated regions and shaded parts of the exons 1 and 4 representing the 5' and 3' UTR's, respectively. The lengths of the introns depicted relate to sizes of the sequences as submitted to the EMBL databank (accession numbers AJ429100 and CFA417559 through CFA17561). Approximate lengths of the introns were estimated by overlapping PCRs including neighboring exons.

(3 K)
