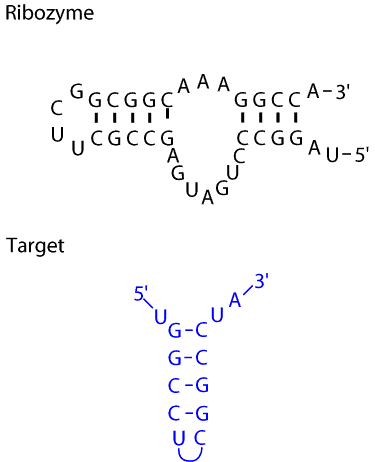

Figure 5. Structures inhibiting ribozyme cleavage
These are possible secondary structures formed in solution by the human P347S hammerhead ribozyme and the human P347S target RNA oligonucleotides.
