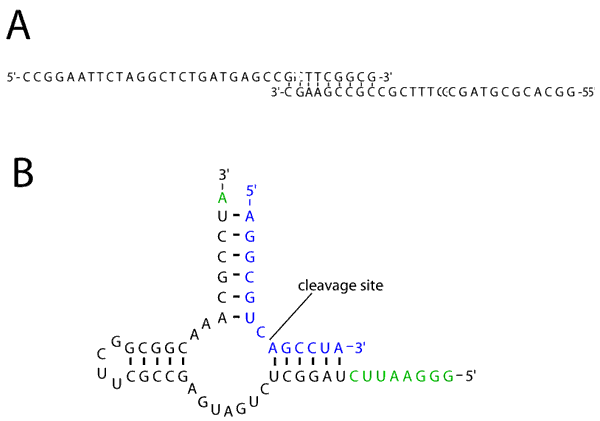

Figure 2. Structure of the cloned porcine hammerhead ribozyme

A: The annealed DNA oligonucleotides P347S sense (top) and P347S antisense (bottom) used to produce the cloned porcine P347S hammerhead ribozyme. B: The secondary structure of the cloned porcine P347S hammerhead ribozyme annealed to the target RNA oligonucleotide (blue). Bases in green result from in vitro transcription of the MluI-cut pHC transcription vector.
