Figure 3 of
Srinivas, Mol Vis 2001;
7:114-119.Figure 3 of
Srinivas, Mol Vis 2001;
7:114-119.

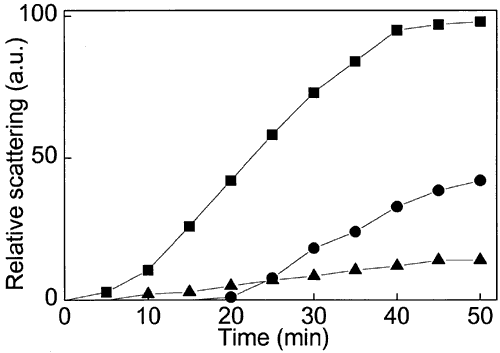

Figure 3. DTT-induced aggregation of a-lactalbumin
DTT-induced aggregation of a-lactalbumin (solid circles, 0.2 mg/ml)at 37 °C, in the presence of a-crystallin (solid triangles, 0.8 mg/ml) or a-crystallin-insulin complex (solid squares, 0.8 mg/ml).
