Figure 1 of Hawes, Mol Vis 1999; 5:22.

Figure 1. Diagram and photograph of fundus photography equipment

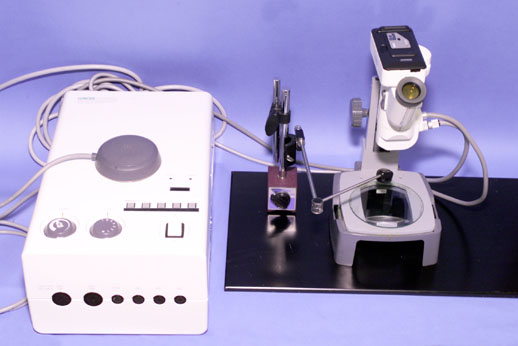

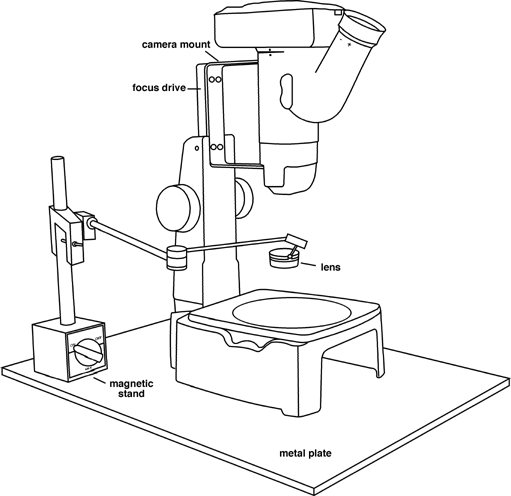

Top panel: Basic features of fundus photography equipment. Lower panel: Photograph of actual equipment. The large white box on the left is the power supply. The foot pedal, which is normally placed on the floor, is resting on top of the power supply.

(35 K)

(34 K)
