Figure 2 of He, Mol Vis 4:32, 1998.

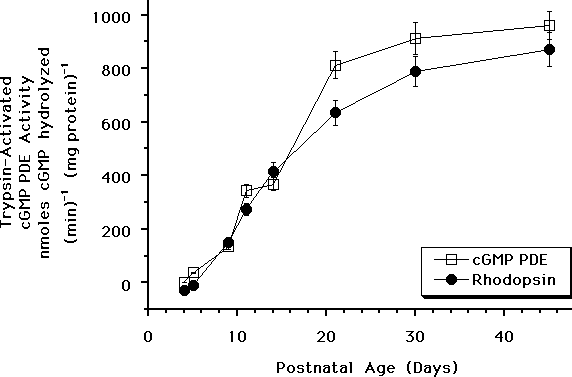

Figure 2. Trypsin-activated cGMP PDE activity and rhodopsin content during rat retinal development

Trypsin-activated cGMP PDE activity and rhodopsin concentration were determined as described in Methods. The values for trypsin-activated PDE, assayed in triplicate, represent the mean±SEM for 4-7 pairs of retinas per age and are expressed as nmoles cGMP hydrolyzed per minute per mg protein. The rhodopsin values represent the mean±SEM for 5-7 retinas per age and are expressed as nmole rhodopsin per mg dry weight.

(5 K)

He, Mol Vis 1998; 4:32 <http://www.molvis.org/molvis/v4/p32>
©1998 Molecular Vision <http://www.molvis.org/molvis/>
ISSN 1090-0535
