Figure 5. The coenzyme-binding site

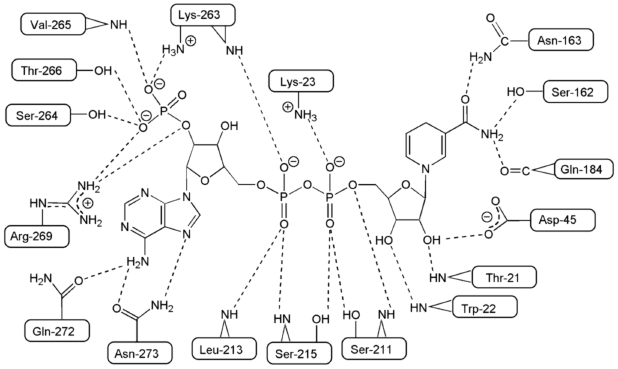

Schematic diagram of the hydrogen bonding and salt linking interactions between ALR1 and NADPH. With the exception of Gln 272 (Glu in ALR2 and FR-1) the coenzyme-binding residues are conserved in ALR1, ALR2 and FR-1.
