Figure 5 of Verma, Mol Vis 2025; 31:55-67.

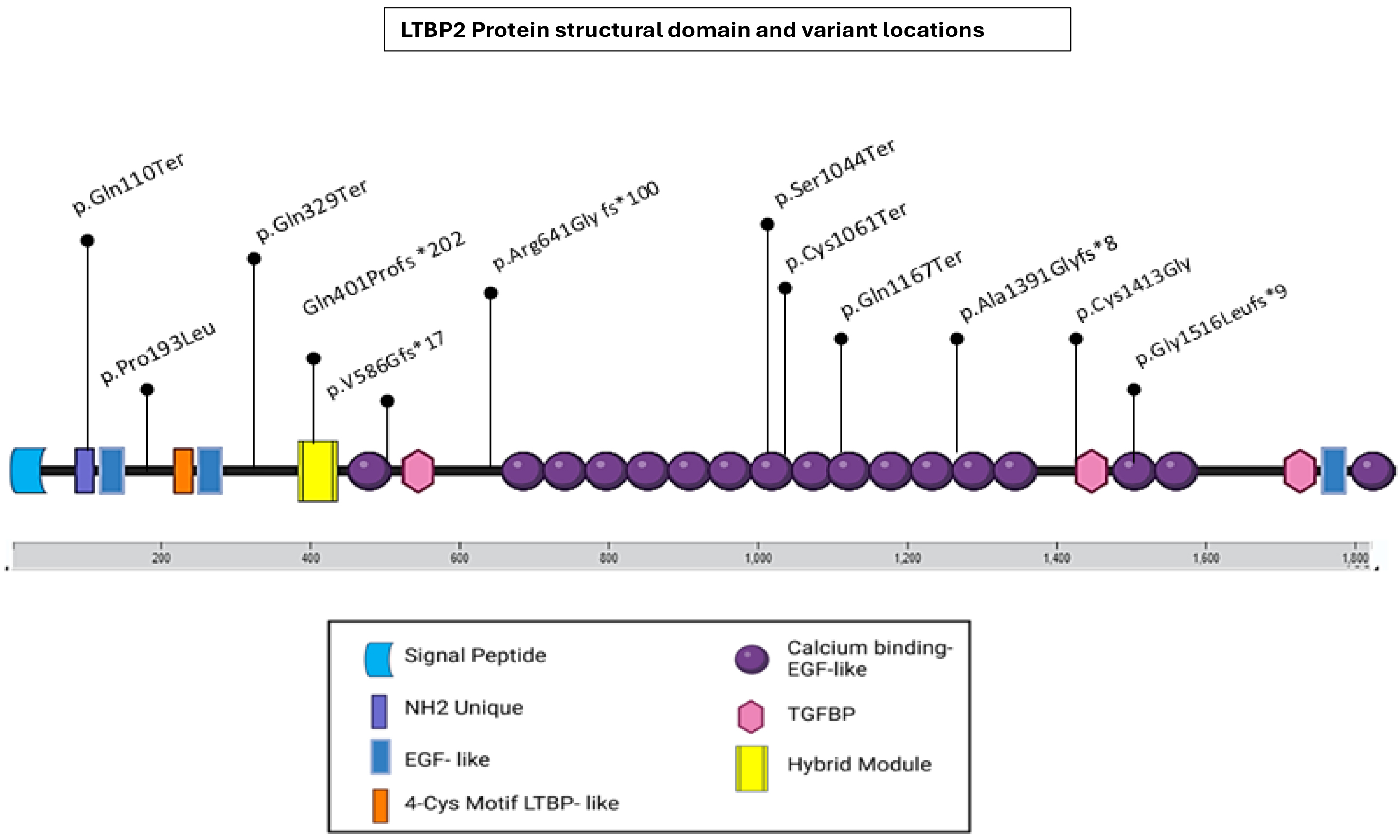

Figure 5. Distribution of identified LTBP2 genetic variants across LTPB2 protein domains. The 7 domains of LTBP2 protein are highlighted in this figure and variant domain-wise locations is specified. Notably, the calcium-binding epidermal growth factor–like domain contains the highest number of variants, accounting for six out of the twelve identified variants.
