Figure 2 of Peng, Mol Vis 2024; 30:123-136.

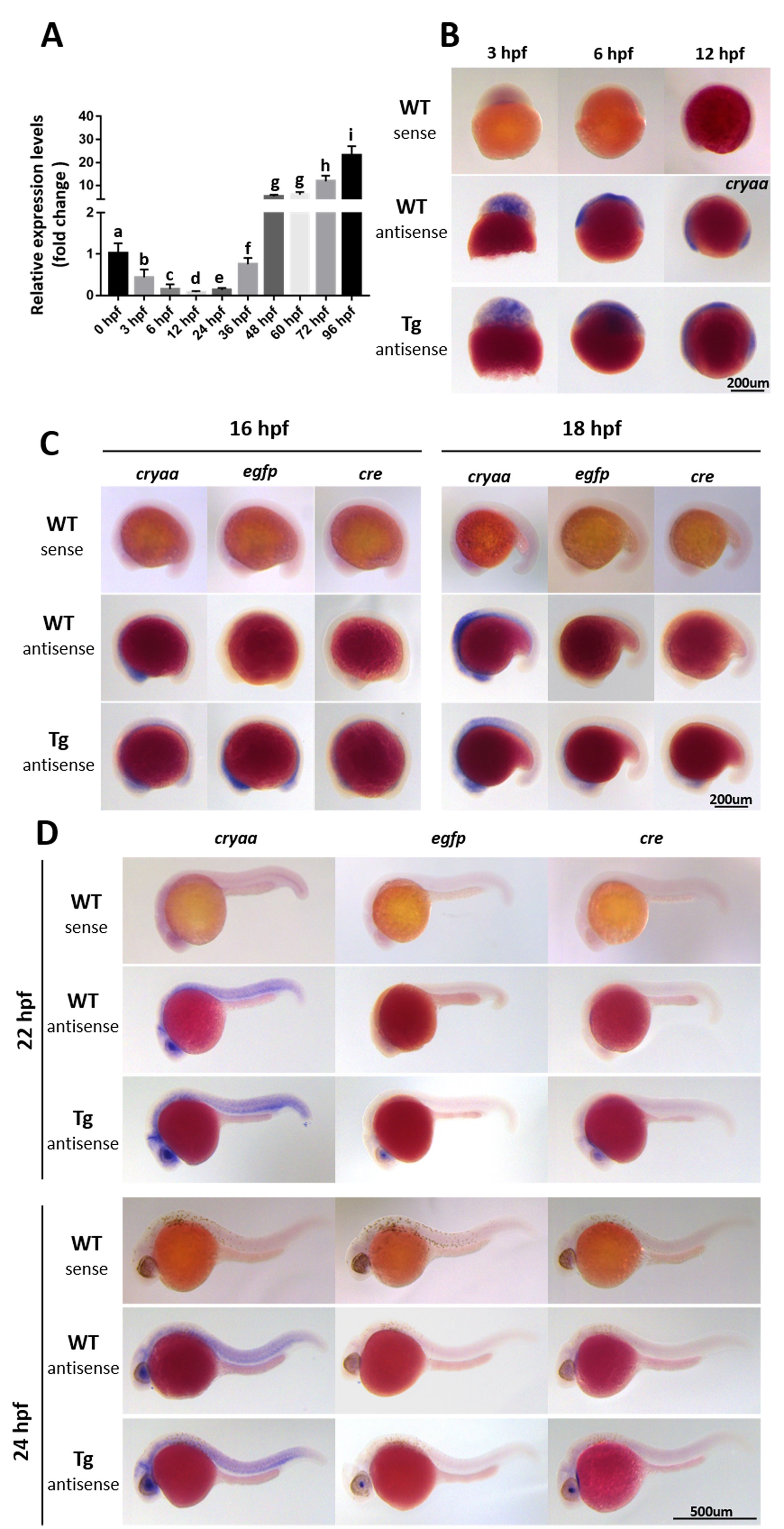

Figure 2. Developmental expression of cryaa, cre, and egfp mRNA in embryonic stages of zTg(cryaa:Cre-cryaa:EGFP) and WT zebrafish. A: qRT-PCR to measure the expression of cryaa mRNA in WT zebrafish during development. Error bars indicate means ± SDs. The different letters above the bars indicate significant differences. n = 3. B: Whole-mount in situ hybridization (WISH) of cryaa mRNA at 3 hpf, 6 hpf, and 12 hpf stages in WT and zTg(cryaa:Cre-cryaa:EGFP; Tg) zebrafish. C, D: WISH of cryaa, egfp, and cre mRNA expression at 16 hpf, 18 hpf, 22 hpf, and 24 hpf in WT and zTg(cryaa:Cre-cryaa:EGFP; Tg) zebrafish.
