Figure 7. Model of Ca [12 (R) HETE]2docked with phosphatidylcholine

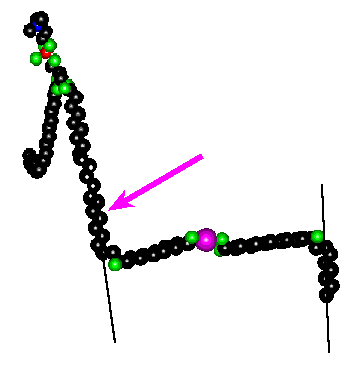

Model of Ca [12 (R) HETE]2 with one hydrocarbon arm docked with a fatty acid ester of phosphatidylcholine (arrow). The parallel axes of the hydrocarbon distal arms of Ca [12 (R) HETE]2 are indicated by lines that demonstrate how two phospholipids could make hydrophobic contact (bonding) with the calcium dimer simultaneously. A color legend is shown below.
![Model of Ca [12 (R) HETE]2 docked with phosphatidylcholine](pcca12rh.gif)
| Color | Atom |
|---|---|
| Black | Carbon |
| Blue | Nitrogen |
| Green | Oxygen |
| Red | Phosphorus |
| Yellow | Sulfur |
| Lavender | Calcium |
