Figure 7 of Domínguez-López, Mol Vis 2021; 27:370-383.

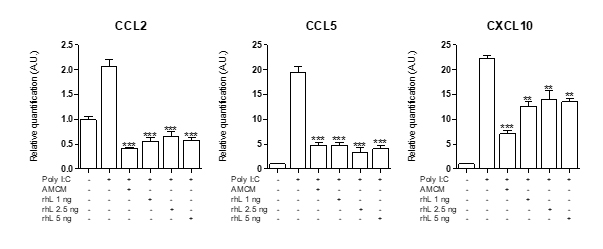

Figure 7. Lumican decreased synthesis of CCL2, CCL5, and CXCL10 in poly I:C–stimulated HLMs. rh-Lumican concomitantly incubated in polyinosinic-polycytidylic acid sodium salt (poly I:C)–stimulated human limbal myofibroblasts (HLMs) statistically significantly diminished the synthesis of mRNA of CCL2, CCL5, and CXCL10. Bars represent the mean ± standard error (SE); ***p<0.001; **p<0.01. All assays were performed three times in triplicate.
