Figure 3 of Stankowska, Mol Vis 2021; 27:37-49.

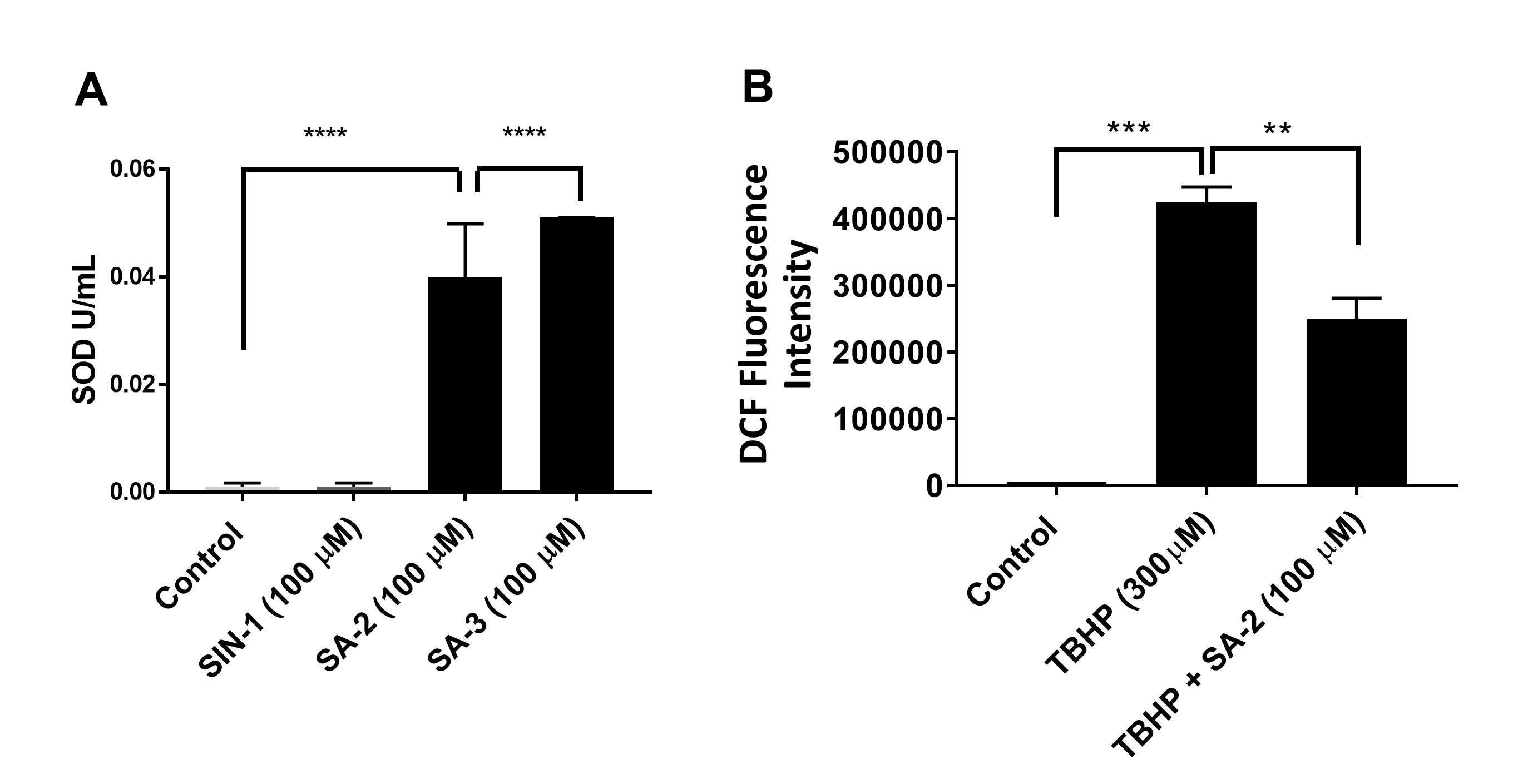

Figure 3. Superoxide dismutase (SOD) enzyme level in human trabecular meshwork (hTM)-80 cells. A: SA-2 increased the SOD enzyme level in hTM-80 cells. Compound SIN-1 (linsidomine, a NO donor) was used as negative control and did not increase the SOD enzyme in hTM-80 cells (as expected) after 24 h. B: SA-2 decreased the reactive oxygen species (ROS) level in hTM cells observed after 1 h. *p<0.01, **p = 0.0072, ***p = 0.0005, ****p<0.0001, one-way analysis of variance (ANOVA), Dunnett’s multiple comparisons test. Experiments were performed in triplicate with n = 4 technical replicates. Values are expressed in mean ± standard error of the mean (SEM).
