Figure 12 of Jafri, Mol Vis 2020; 26:392-408.

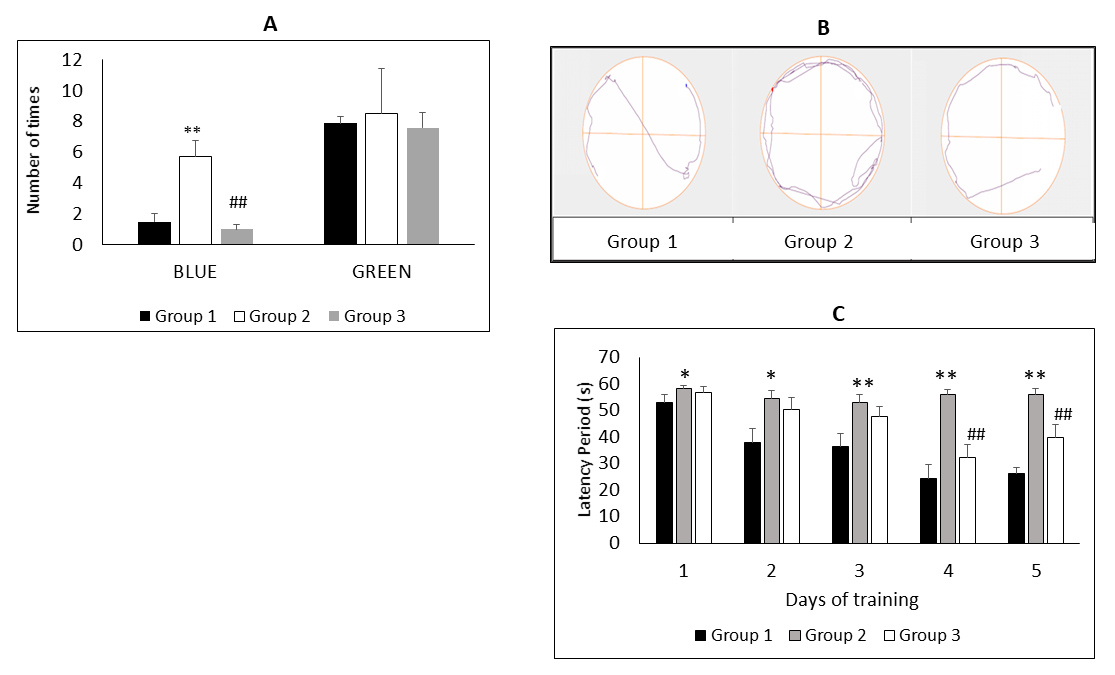

Figure 12. Effect of MgAT on NMDA-Induced changes in the colour recognition by rats. A: Colour recognition test in open field arena (B) track plot of the activity of rats in Morris Water Maze for 60 s. C: Latency period for rats to find the platform in Morris Water Maze. Group 1 was injected with PBS, group 2 was injected with NMDA and group 3 was injected with MgAT 24 h before the injection of NMDA. NMDA: N-methyl-D-aspartic acid, MgAT: Magnesium Acetyltaurate. *p<0.05 versus group 1, **p<0.01 versus group 1, ##p<0.01 versus group 2. (n=6).
