Figure 3 of Iqbal, Mol Vis 2020; 26:334-344.

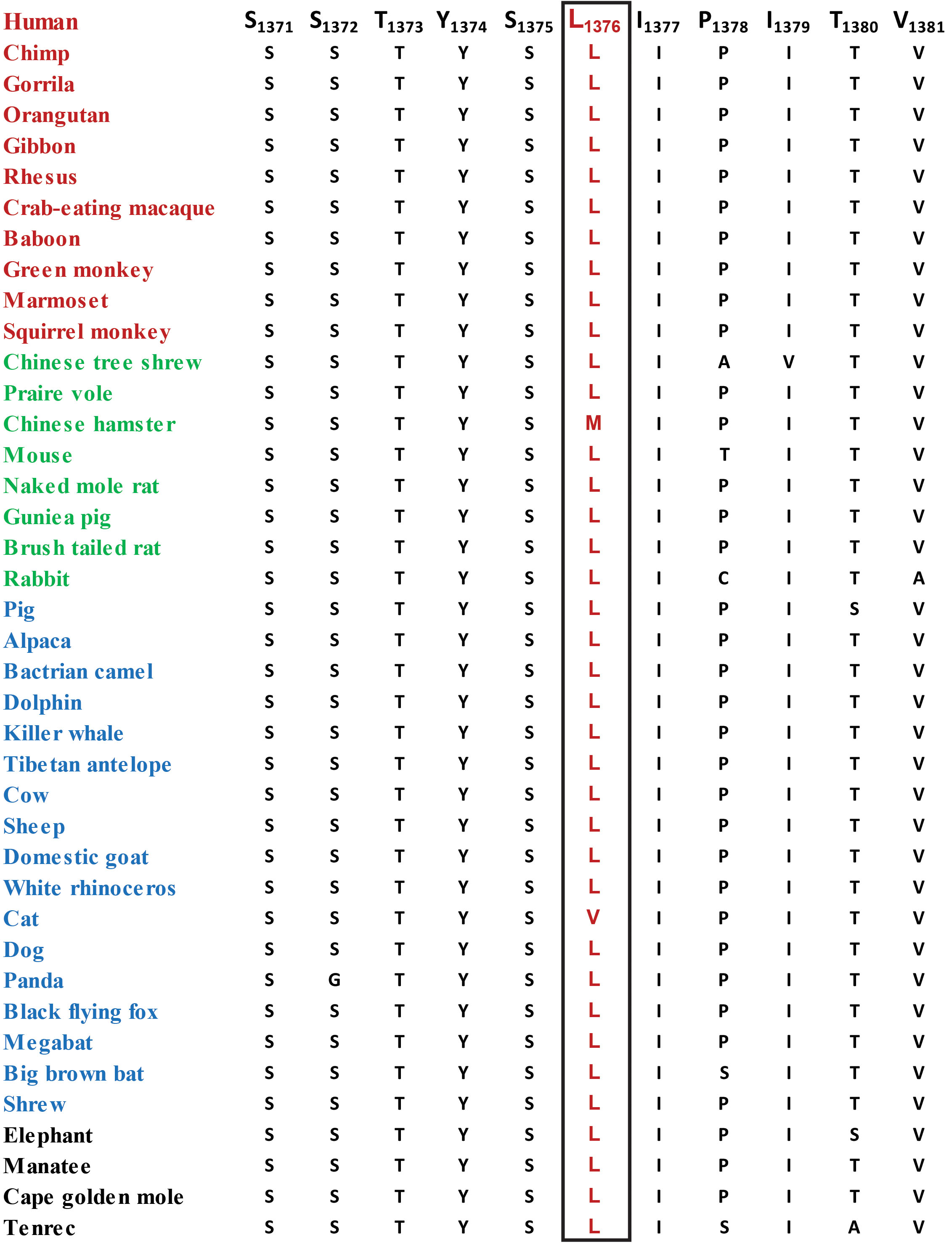

Figure 3. Sequence alignment of FYCO1 orthologs illustrating the conservation of amino acid leucine at position 1376. The boxed amino acids illustrate the conservation of Leu1376 among other FYCO1 orthologs. Red: primates; green: Euarchontoglires; blue: Laurasiatheria; black: Afrotheria.
