Figure 3 of Reddy, Mol Vis 2020; 26:311-325.

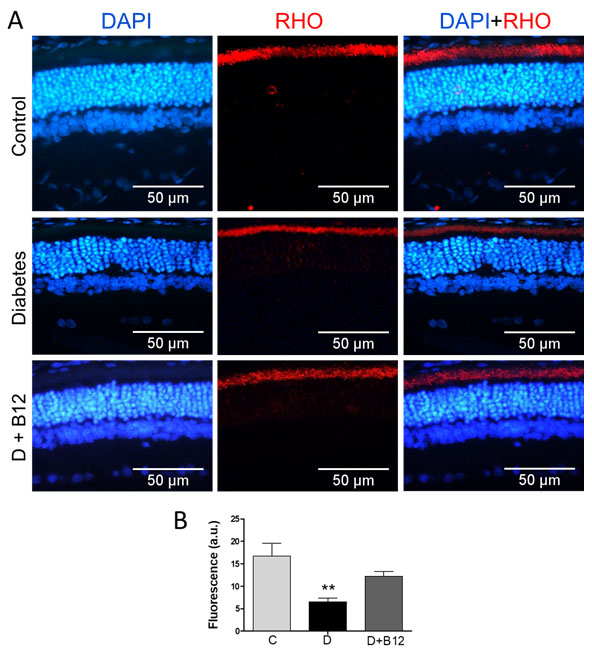

Figure 3. Immunofluorescence staining for rhodopsin in the rat retina. A: Representative images of immunofluorescence staining for rhodopsin (red), counterstained with 4′, 6-diamidino-2-phenylin-dole (DAPI; blue) for cellular nuclei. Magnification = 400X. Scale bar = 50 µm. B: Quantification of rhodopsin staining. Data are mean ± standard error of the mean (SEM, n=3). C, control; D, diabetes; D+B12, diabetic rats treated with vitamin B12. **Significant difference from the control group (p<0.01).
