Figure 1 of Reddy, Mol Vis 2020; 26:311-325.

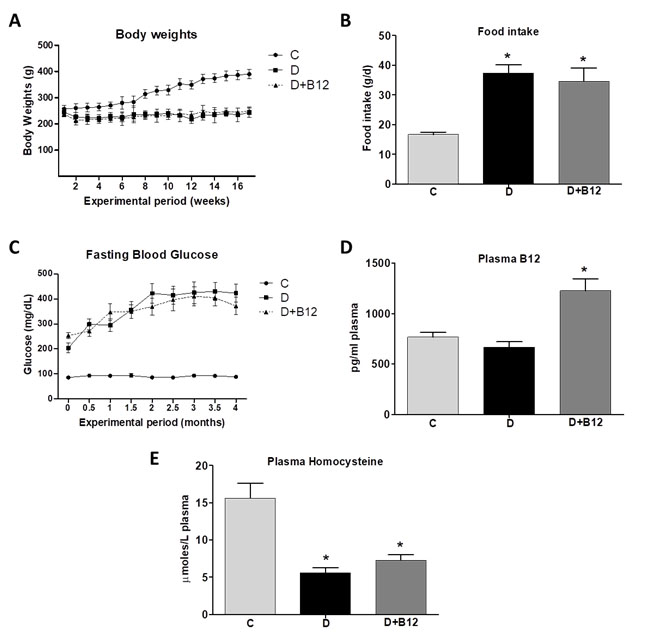

Figure 1. Animal general and biochemical characteristics. A: Bodyweight. B: Food intake. C: Fasting blood glucose levels. D: Plasma vitamin B12. E: Plasma homocysteine levels in rats (n = 8). Data are mean ± standard error of the mean (SEM). C, control; D, diabetes, D+B12, diabetic rats treated with vitamin B12. *Significant difference from the control group; #significant difference from the diabetes group (p<0.05).
