Figure 3 of Jara, Mol Vis 2020; 26:204-215.

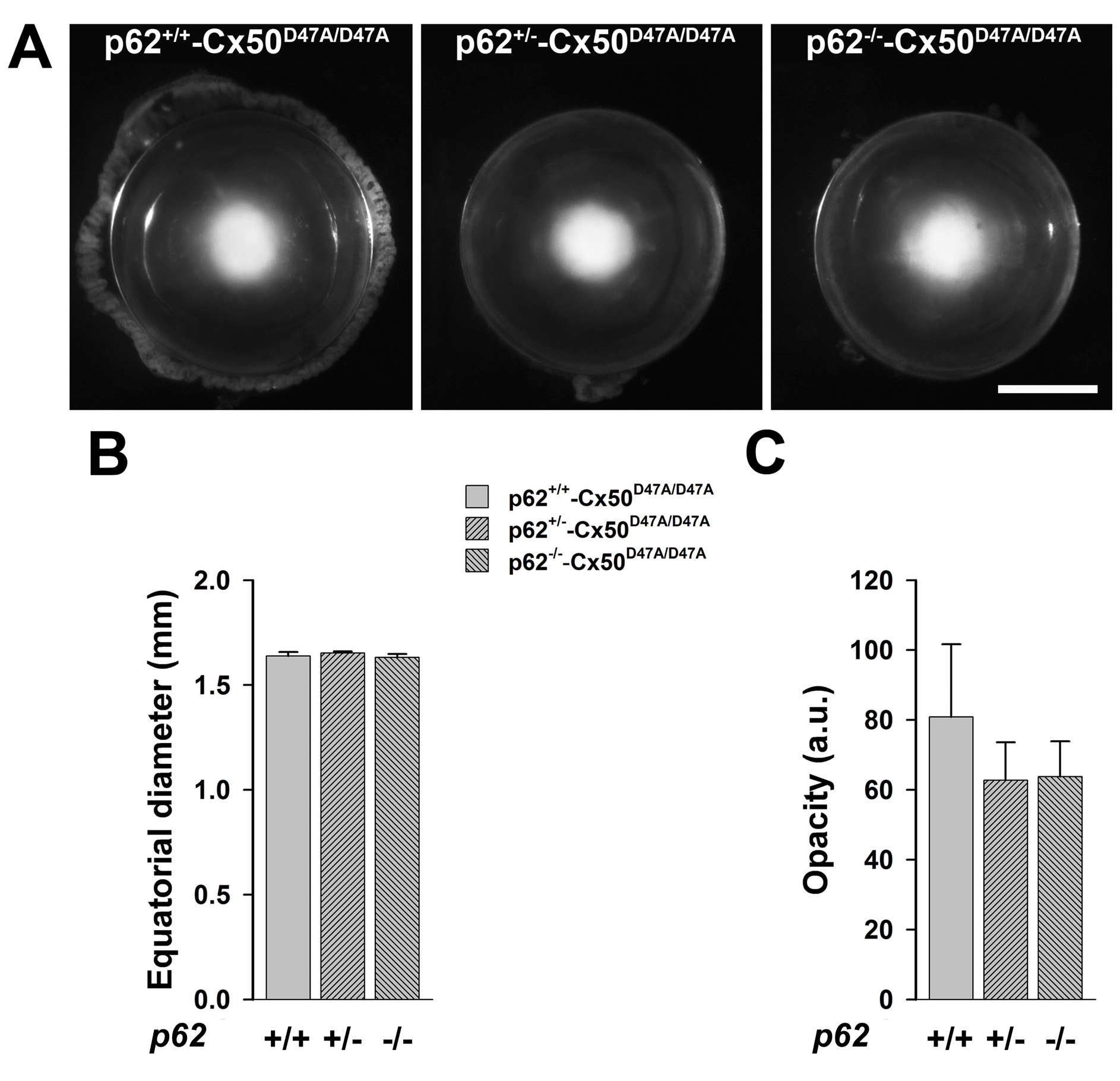

Figure 3. The sizes and opacities of homozygous Cx50D47A lenses are not affected by the deletion of p62. A: Dark-field photomicrographs of lenses from 1-month-old homozygous Cx50D47A littermates that were wild-type for p62 (p62+/+-Cx50D47A/D47A) or heterozygous (p62+/−-Cx50D47A/D47A) or homozygous (p62−/−-Cx50D47A/D47A) p62 null. B: The graph shows the equatorial diameters (in mm) determined from dark-field photomicrographs of lenses from homozygous Cx50D47A mice that were wild-type for p62 (p62+/+-Cx50D47A/D47A) or heterozygous (p62+/−-Cx50D47A/D47A) or homozygous (p62−/−-Cx50D47A/D47A) p62-null. C: The graph shows the quantification of the integrated densities of the cataracts (opacities) from p62+/+-Cx50D47A/D47A, p62+/−-Cx50D47A/D47A or p62−/−-Cx50D47A/D47A lenses in arbitrary units (a.u.). Data in B and C are presented as the mean (bar) + standard error of the mean (n = 3 sets). Scale bar: 600 µm.
