Figure 4 of Atilano, Mol Vis 2020; 26:158-172.

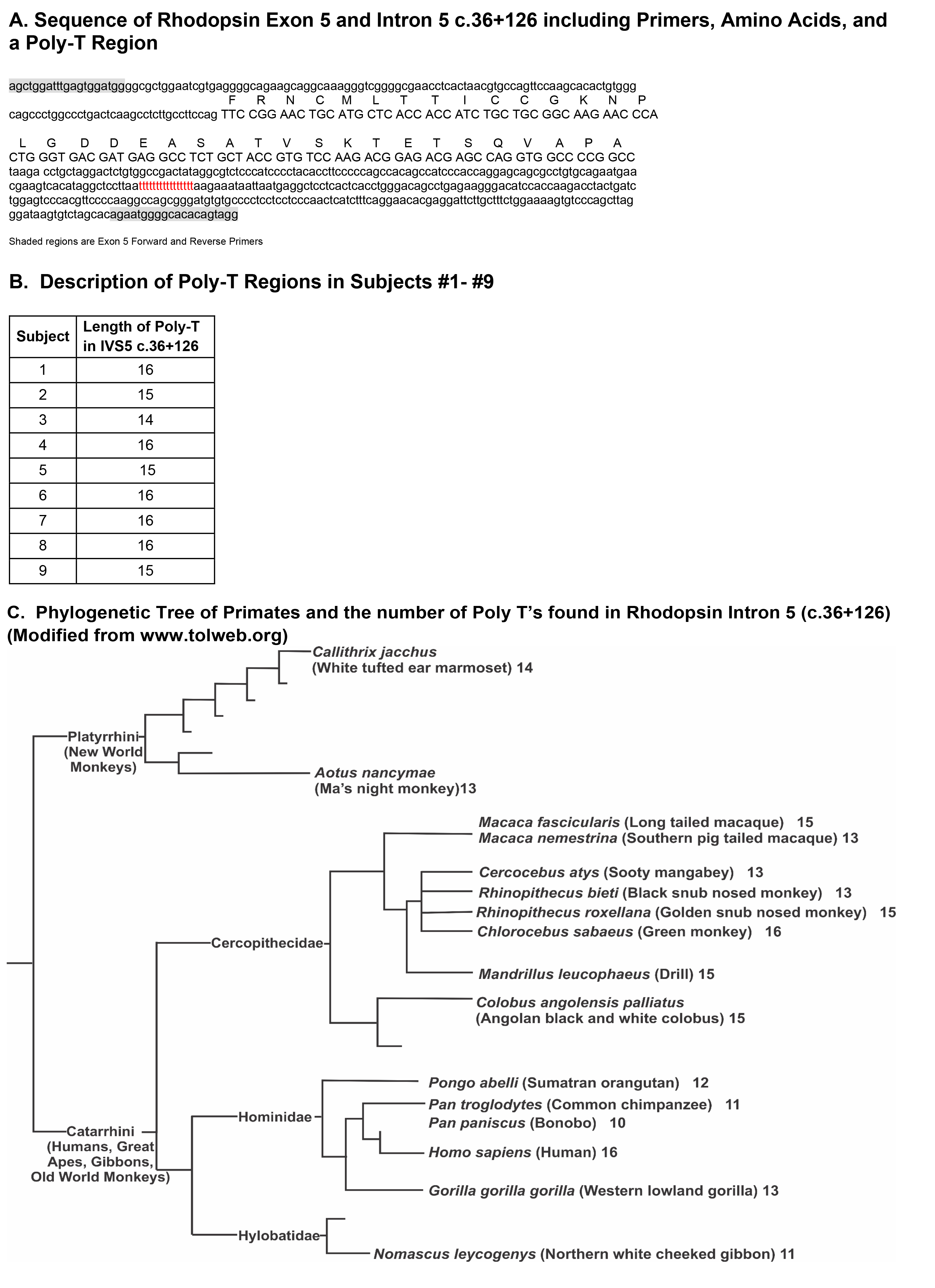

Figure 4. Schematic showing nucleotide sequences and amino acid profiles of the rhodopsin exon 5 and intron 5 c.36+126. A: Schematic showing nucleotide sequences and amino acid profiles of the rhodopsin exon 5 and intron 5 c.36+126. Amino acids are represented by capital letters. Gray highlights represent primer sites. The poly-T region is shown in red. Reference sequence is NG_009115.1. B: The poly-T region is present in the nine subjects and ranges from 14 to 16 T nucleotides. C: Schematic of the primate phylogenetic tree (data from Tolweb.org) showing the poly-T repeats are highly conserved in New World monkeys, Old World monkeys, great apes, gibbons, and humans.
