Figure 1 of Hadrami, Mol Vis 2019; 25:373-381.

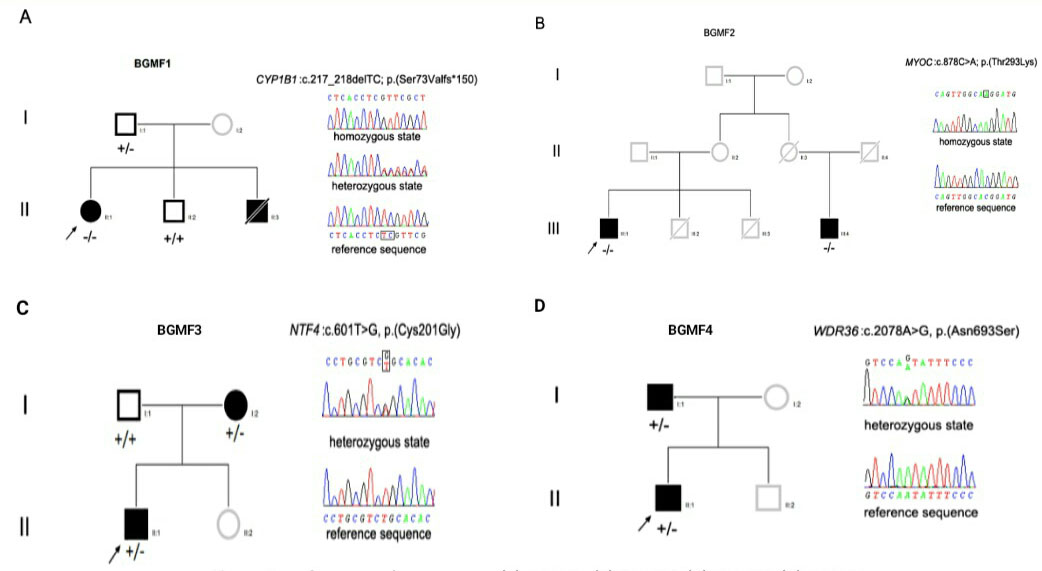

Figure 1. Family pedigrees and DNA partial sequences showing mutations in respective genes. A: Deletion (c.217_218delTC) in exon 2 of CYP1B1 (OMIM: 601771) in blindness by glaucoma in Mauritanian family 1 (BGMF1). B: Missense mutation (c.878C>A) in exon 3 (rs139122673) of MYOC (OMIM: 60165) in BGMF2. C: Missense mutation (c.601T>G) in exon 2 of NTF4 (OMIM: 162662) in BGMF3. D: Missense mutation (c.2078A>G) in exon 18 of WDR36 in BGMF4.
