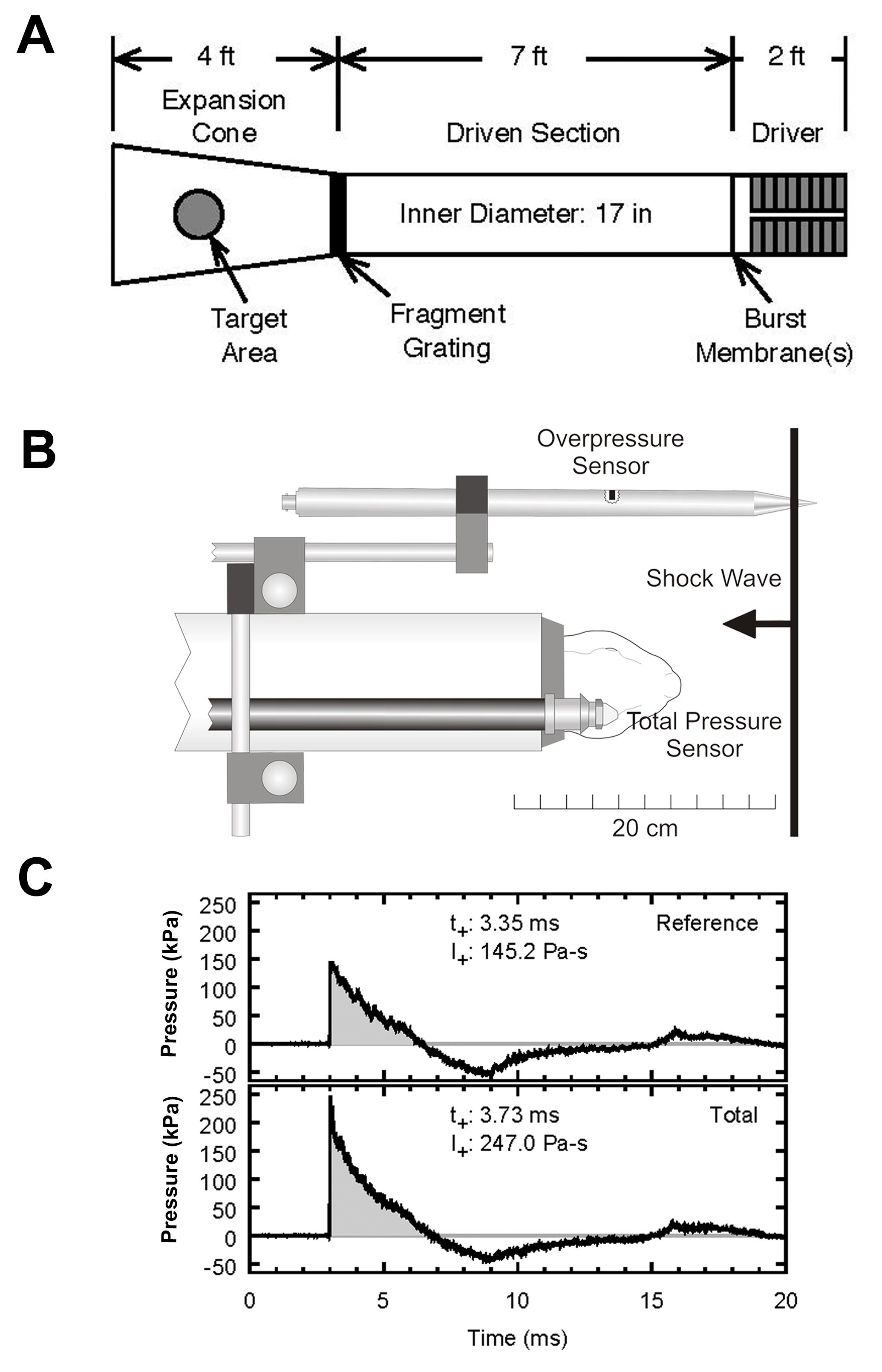

Figure 1. Deployment of a compressed air-driven shock tube to deliver a primary blast effect to rabbit eyes. (A) Schematic representation of the air-driven shock tube device. (B) Position of pressure sensors relative to target. The bodies of the rabbits are protected by a PVC tube. (C) Graph of typical blast overpressure wave profile. Note that the duration of the positive pressure peak is approximately 3 ms.
