Figure 6 of Markov, Mol Vis 2018; 24:818-833.

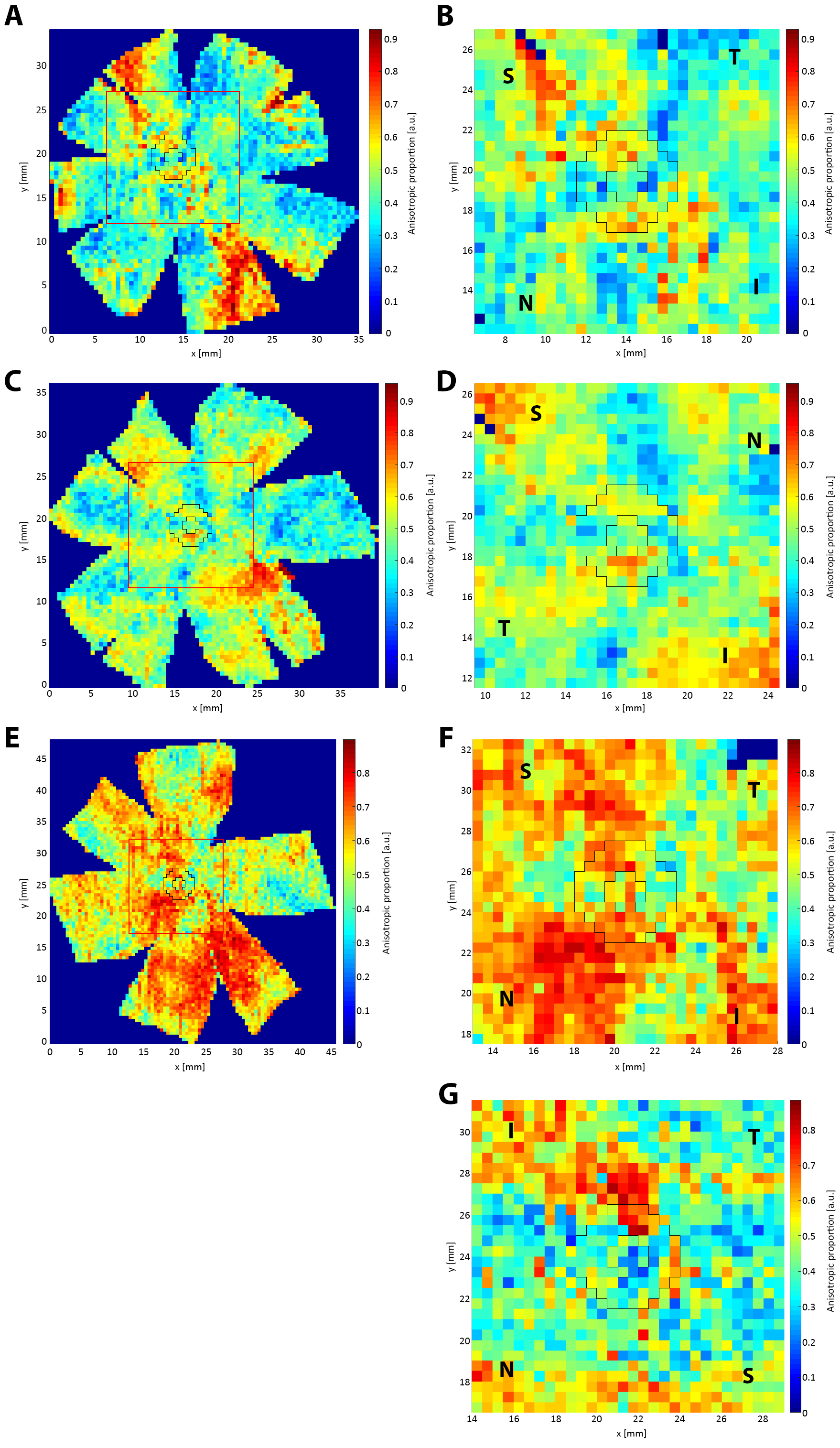

Figure 6. WAXS contour maps of collagen anisotropic proportion for one non-myopic (AB) and two highly myopic (CF) posterior scleras. A: Full map of non-myopic specimen N4. B: 30 × 30 point zoom of N4. C: Full map of highly myopic specimen HM1. D: 30 × 30 point zoom of HM1. E: Full map of highly myopic specimen HM2. F: 30 × 30 point zoom of HM2. G: Map of myopic specimen HM3. The zoom regions are denoted by a red square on the full maps. Peripapillary scleral region is shown bounded by black lines. S, N, I, and T denote the superior, nasal, inferior, and temporal directions, respectively.
