Figure 3 of Jafri, Mol Vis 2018; 24:495-508.

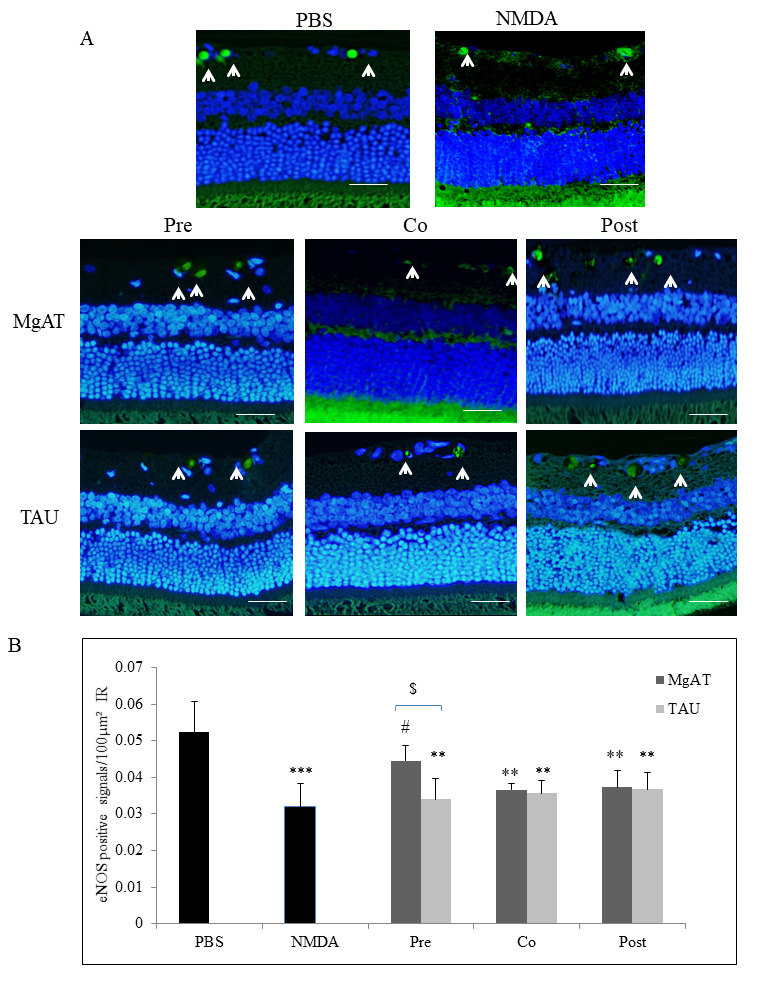

Figure 3. Effect of MgAT and TAU on NMDA-induced changes in eNOS expression. A: Microphotographs of retinal sections immunostained with eNOS antibodies showing the effect of MgAT and TAU on the NMDA-induced decrease in the expression of iNOS (20X). Green fluorescence shows eNOS expression stained with FITC (shown by arrow) while blue fluorescence shows retinal nuclei stained with 4′,6-diamidino-2-phenylindole (DAPI). Scale bar represents 50 μm. B: Quantitative estimation of the effect of MgAT and TAU on the NMDA-induced decrease in the expression of eNOS is also represented graphically. Pre, Co, and Post indicate that MgAT/TAU were injected 24 h before, simultaneously, or 24 h after intravitreal administration of NMDA, respectively. **p<0.01 versus the PBS-treated group, ***p<0.001 versus the PBS-treated group, #p<0.05 versus the NMDA-treated group, $p<0.05 corresponding MgAT versus TAU groups, n=6; bars represent mean ± SD. NMDA: N-methyl-D-aspartic acid, MgAT: Magnesium acetyl taurate, TAU: Taurine, GCL: Ganglion cell layer.
