Figure 1 of Kohen, Mol Vis 2018; 24:239-250.

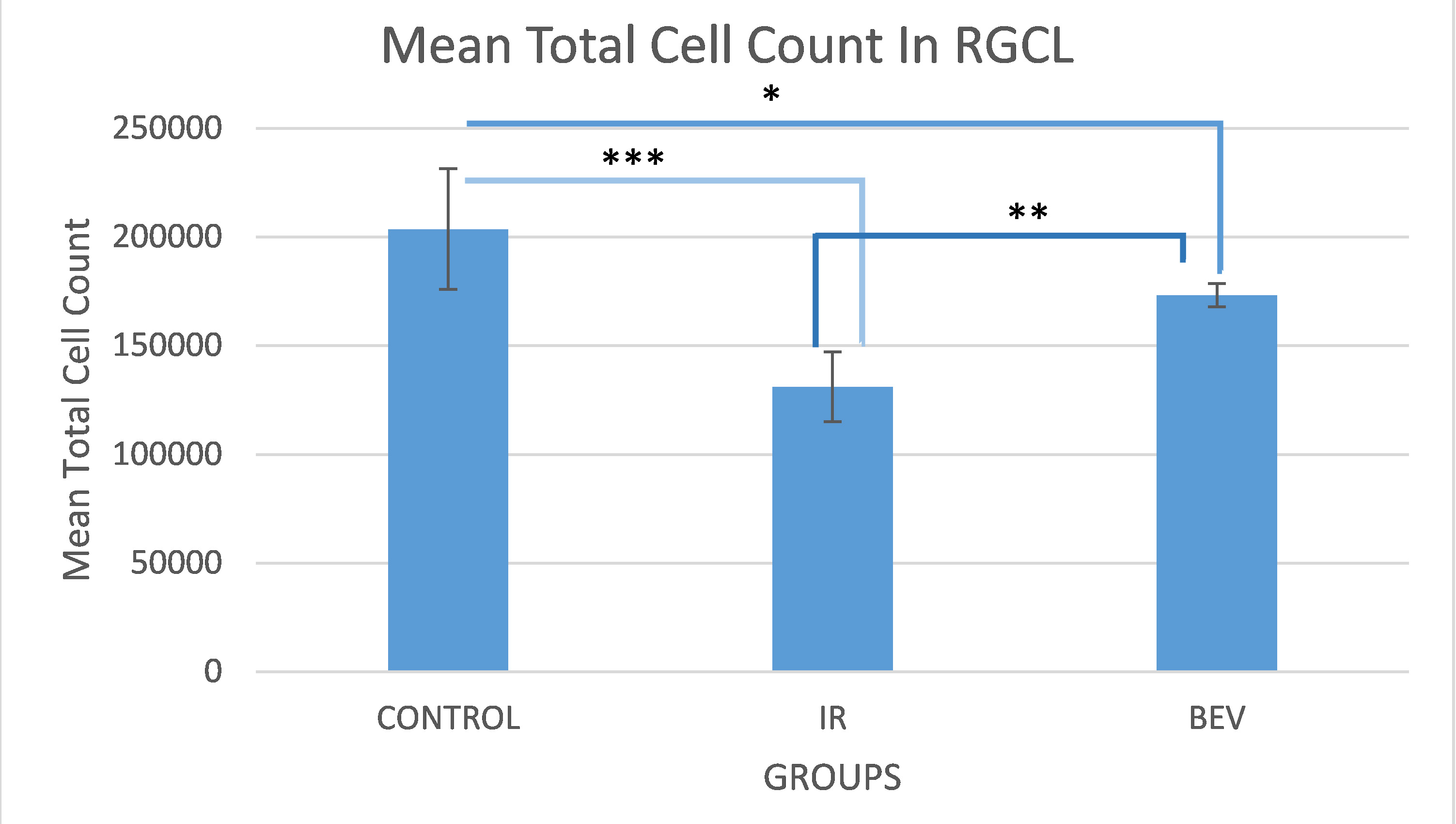

Figure 1. Stereological analysis of the rat retina demonstrates surviving cells in the ganglion cell layer. The control group has the highest number of living cells as expected since they did not receive any manipulation. The important data in this graph is that the bevacizumab (BEV) group has more living cells than the ischemia and reperfusion (IR) group. This is an important finding that shows bevacizumab is neuroprotective in the event of ischemia and reperfusion. *p<0.01, **p<0.001 and ***p<0.0001. Error bars are median ± standard error of the mean (SEM), where n=6.
