Figure 4 of Donahue, Mol Vis 2017; 23:987-1005.

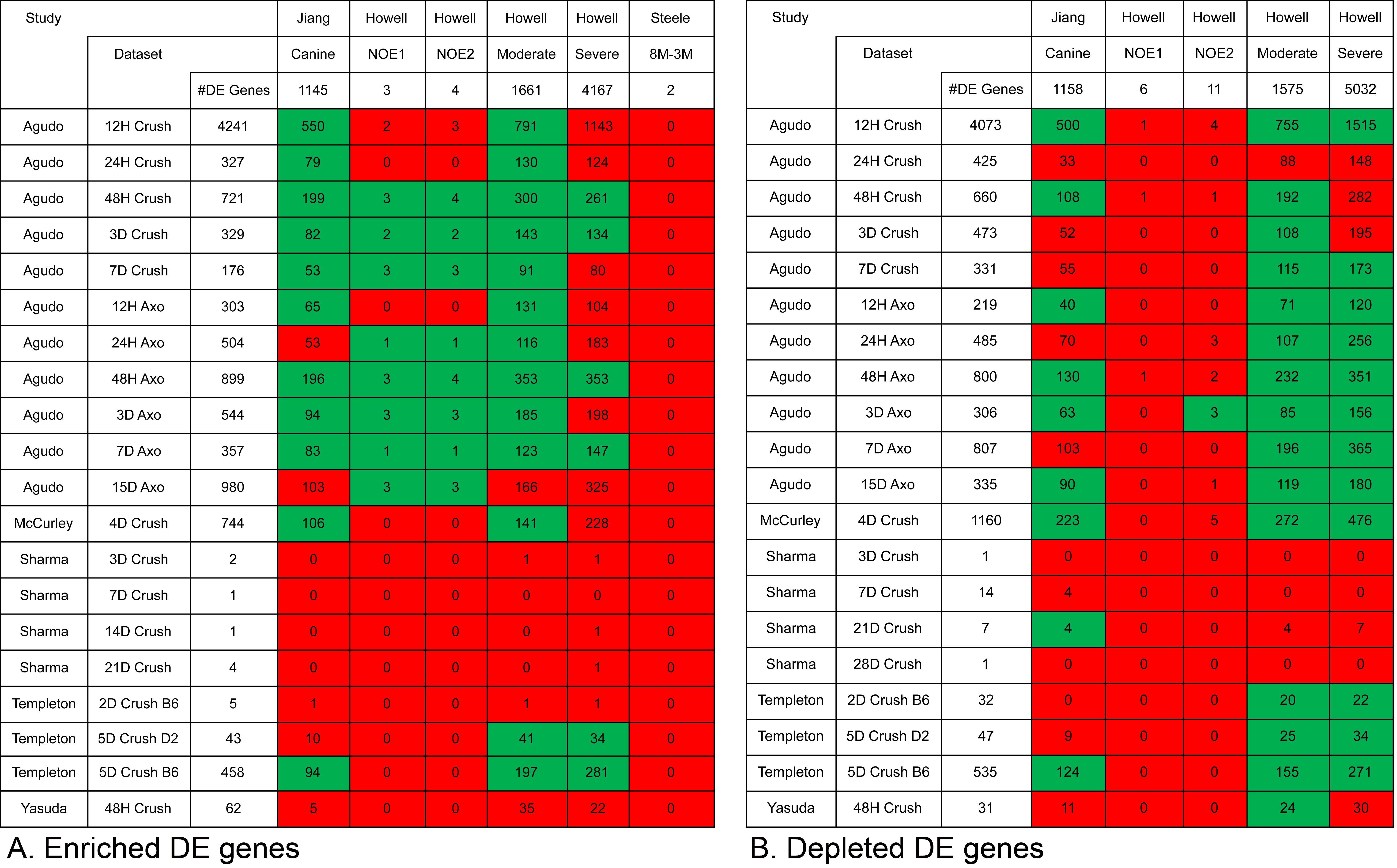

Figure 4. Pair-wise comparison of acute (vertical) and chronic (horizontal) optic nerve injury data sets show moderate levels of overlapping DE genes for comparison of (A) enriched and (B) depleted genes. The total number of DE genes identified in the independent analysis is shown for each data set. In each cell, the total number of overlapping genes between two data sets is recorded. Based on Monte Carlo simulations, the cells are color-coded red for a non-significant overlap, or green for a significant overlap.
