Figure 1 of Martins, Mol Vis 2017; 23:495-503.

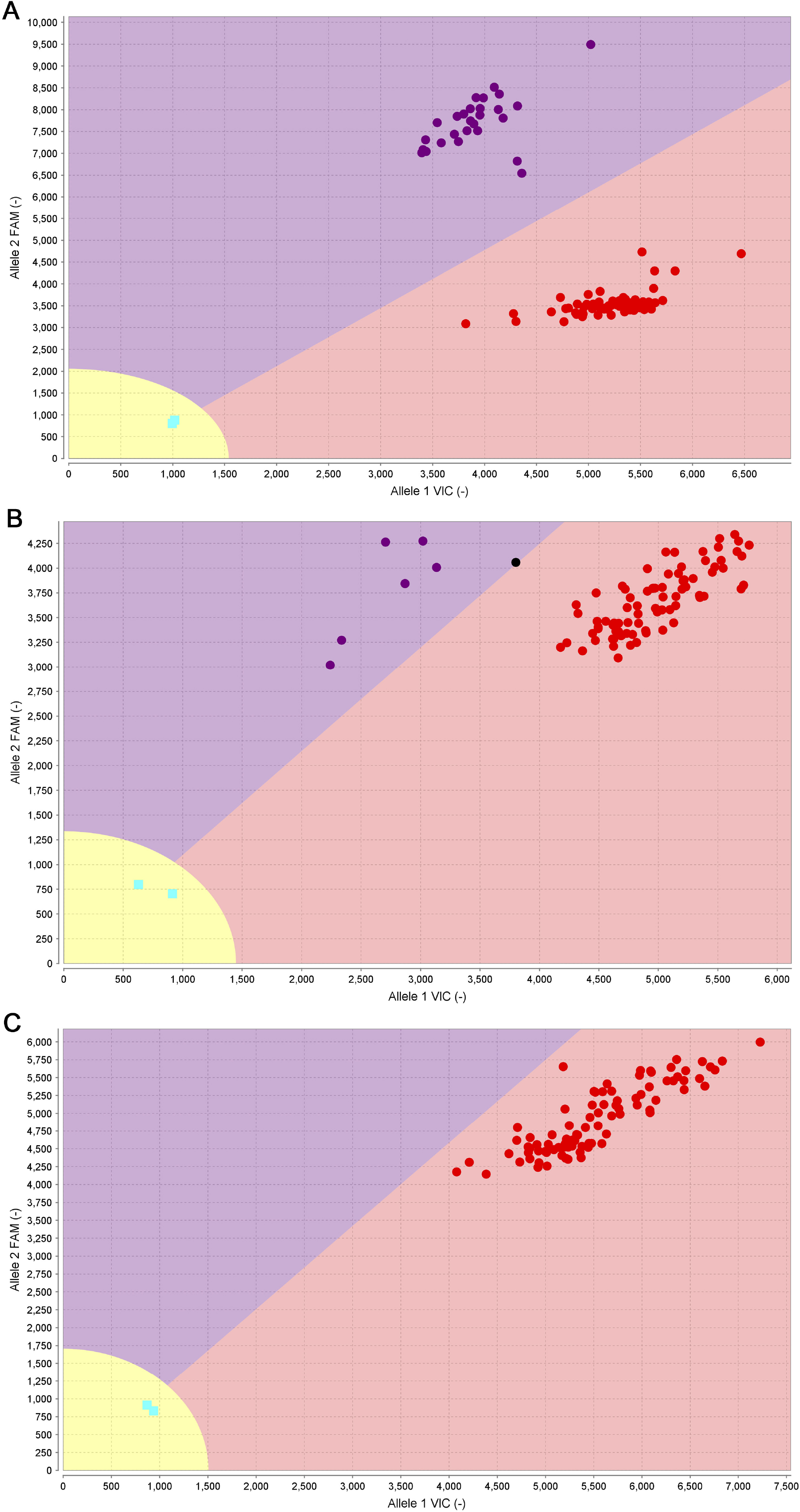

Figure 1. Results for the TaqMan® OpenArray Genotyping using the TaqMan® Genotyper software. The red clusters show the individuals with the probe marked with the VIC® fluorophore (normal sequence), while the purple clusters present the individuals with probes marked with the FAM® fluorophore (mutated sequence). A: The m.G11778A mutation was present in 27 individuals, while 60 individuals did not have the mutation. B: Seven individuals presented the m.T14484C mutation. The black dot was not autoclassified by the software, probably indicating heteroplasmy (checked with another technique). C: No mutant cases were found for the m.G3460A mutation as expected.
