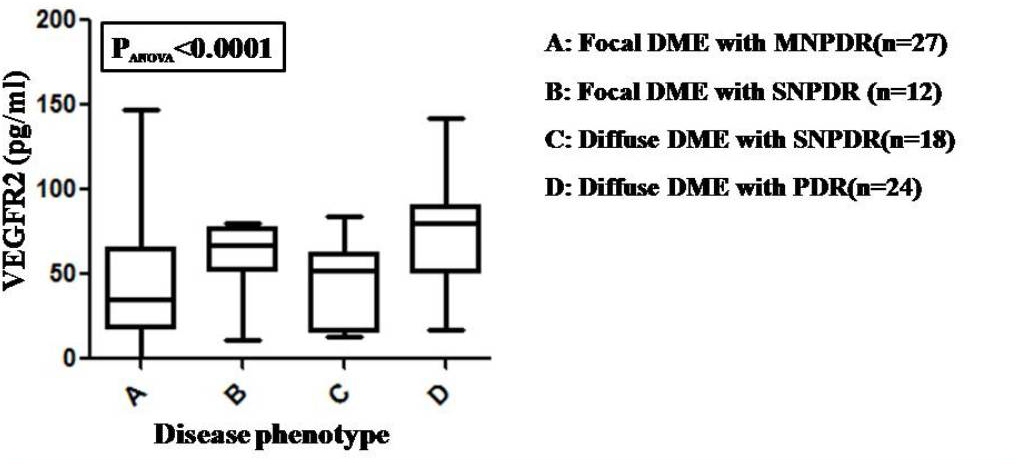

Figure 2. Box whisker plot represents the distributional difference of sVEGFR2 (pg/ml) among the different phenotypes (grades or severity) of DR. Plasma concentration of sVEGFR2 consistently increased during severity of the disease in significant manner (P_anova : 0.001). Further Tukey's Multiple Comparison Test revealed that VEGFR2 significantly elevated among Diffuse DME with PDR (D) compared to Focal DME with MNPDR (A), P_tukeys <0.001 (A vs D) Diffuse DME with SNPDR P_tukeys : 0.001 (C vs D). Data are mean± SD, sample size (n) as indicatedin figure legend.
