Figure 4 of Hulleman, Mol Vis 2016; 22:73-81.

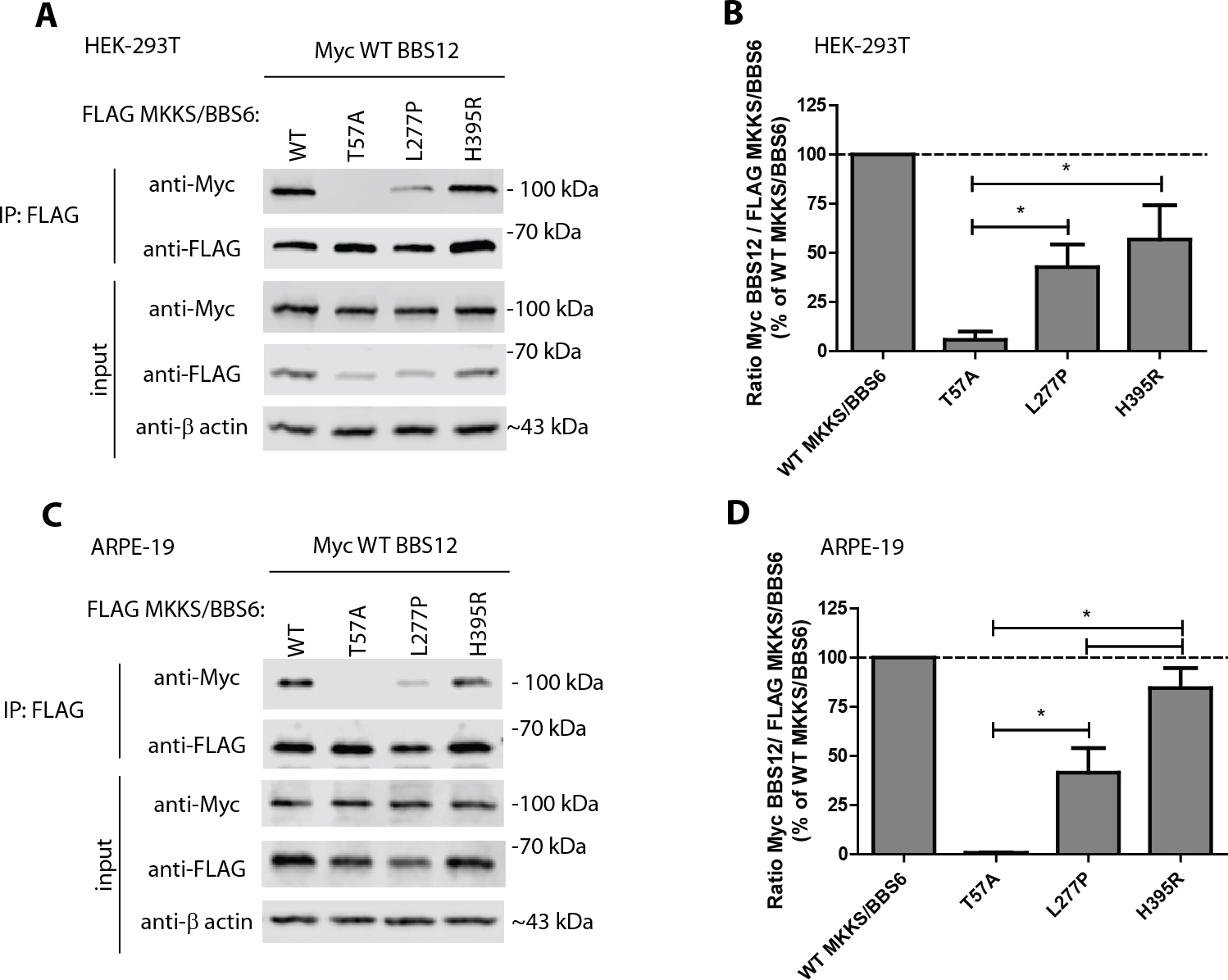

Figure 4. The H395R mutation differentially disrupts the MKKS/BBS6 interaction with BBS12 depending on the cell type used. A: Evaluation of mutant MKKS/BBS6 interaction with BBS12. Human embryonic kidney (HEK-293T) cells were cotransfected with FLAG MKKS/BBS6 variants along with Myc wild-type (WT) BBS12, and cell lysates were then subjected to immunoprecipitation (IP) using anti-FLAG M2 beads as described previously [7]. Representative data of more than three independent experiments. B: Quantification of the MKKS/BBS6-BBS12 interaction described in (A). C: Mutant MKKS/BBS6 interaction with BBS12 in human adult retinal pigmented epithelium (ARPE-19) cells. ARPE-19 cells were cotransfected with FLAG and Myc constructs as described above, and FLAG-tagged MKKS/BBS6 was immunoprecipitated. Representative data of three independent experiments. D: Quantification of the MKKS/BBS6-BBS12 interaction described in (C). The band intensities of the IP’d Myc WT BBS12 and FLAG MKKS/BBS6 proteins were quantified using LI-COR software. The ratio of Myc WT BBS12 to FLAG MKKS/BBS6 was calculated and displayed as a percentage of the Myc WT BBS12/FLAG WT MKKS/BBS6 ratio. n≥3; average ±standard error of the mean (SEM); *=p<0.05, t test. Note: The only variant that had a significantly different ability to bind to WT BBS12 in HEK-293T versus ARPE-19 cells was H395R (p<0.05, t test).
