Figure 2 of Musada, Mol Vis 2016; 22:491-502.

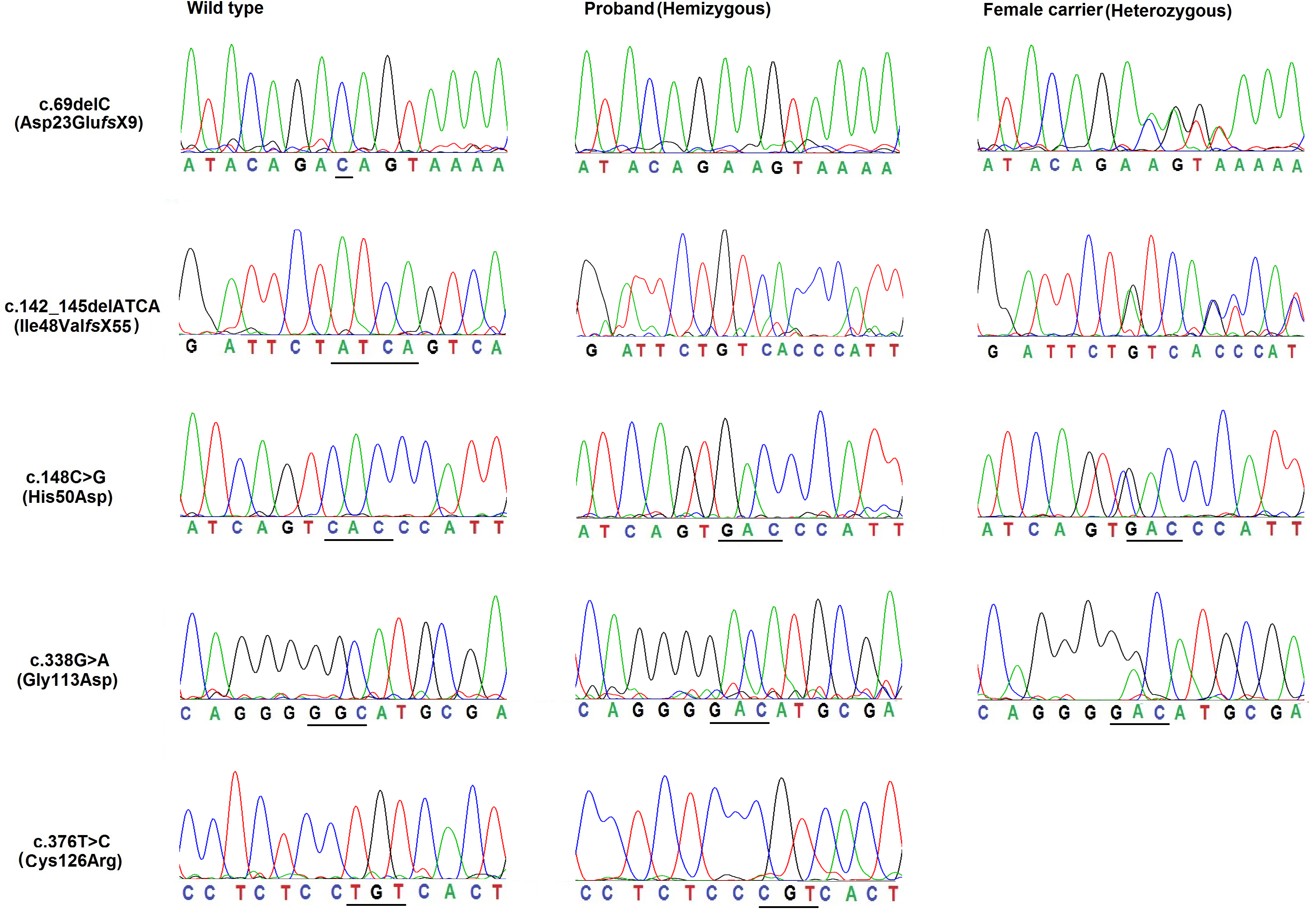

Figure 2. Electropherograms of the five novel nucleotide changes identified in the NDP gene. The cDNA positions of the nucleotide changes and the amino acid changes are shown at the left side of the picture. Wild-type and altered electropherograms are shown at the right side of each corresponding nucleotide change.
