Appendix 5. Negative controls included in the experiments for determining co-localization of the EPHA2-Myc mutant proteins with the cis-golgi apparatus in MDCK cells.

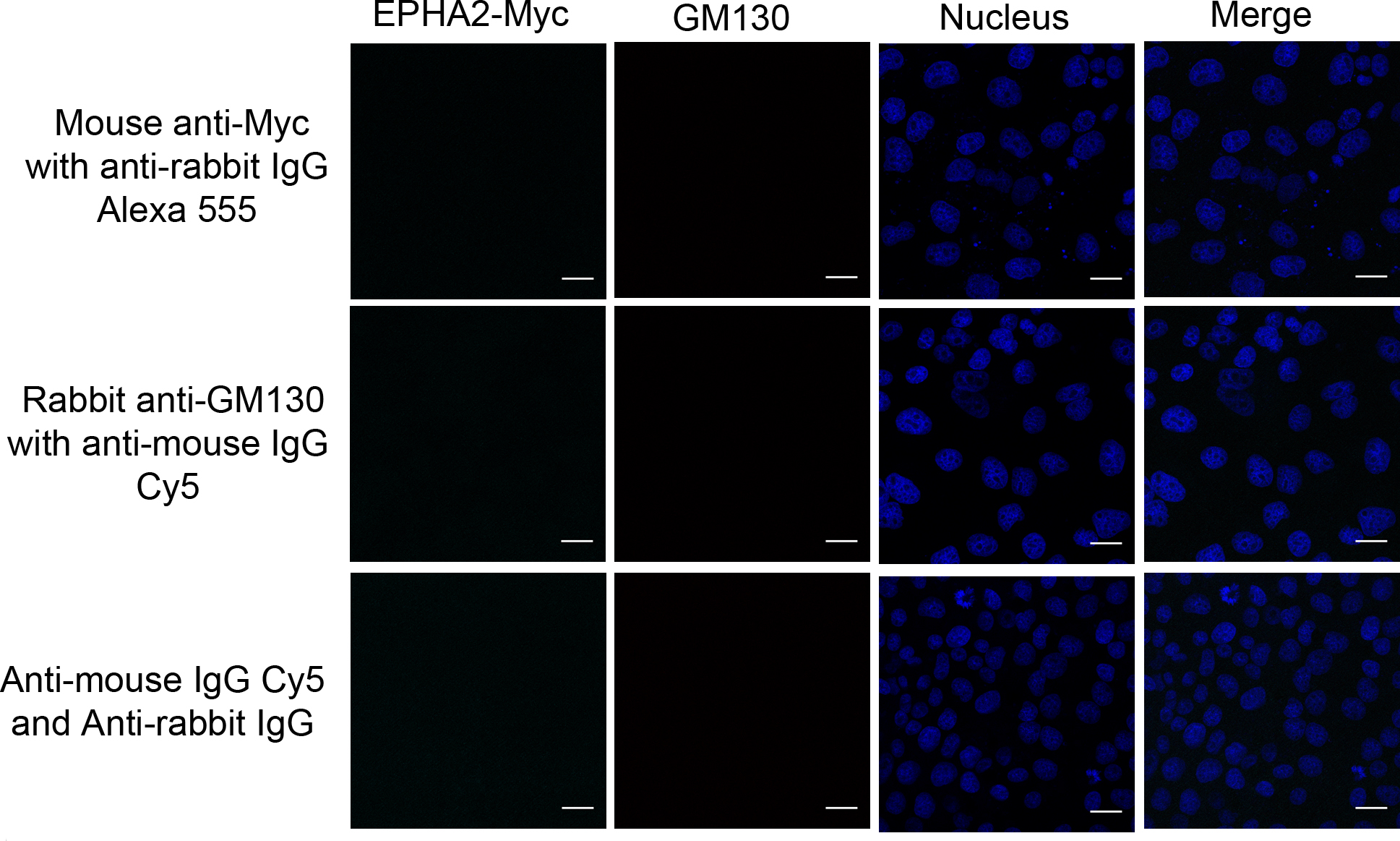

To access the data, click or select the words “Appendix 5.” Top row, MDCK cells transfected with the EPHA2-Myc construct encoding the p.T940I mutation hybridized with the mouse anti-Myc primary antibody and anti-rabbit IgG conjugated with Alexa Flour 555 secondary antibody as a control for cross-reactivity of the anti-rabbit secondary antibody to the primary antibody generated in mouse. Middle row, cells hybridized with the rabbit anti-GM130 primary antibody (marker for cis-golgi apparatus) and Cy5 conjugated anti-mouse IgG secondary antibody as a control for cross-reactivity of the anti-mouse secondary antibody to the primary antibody generated in rabbit. Bottom row, mock transfected cells hybridized with both the secondary antibodies without a primary antibody used as a control for any background due to the secondary antibodies. Nuclei (blue) were stained with DAPI. Representative images of controls from two independent experiments are shown. Scale-bar 20 µm.
